PROSOFT MVI56E-MNETCR MODBUS TCP/IP MASTER/SLAVE ENHANCED COMM

Manufacturer: Prosoft Technology, Inc. | Catalog # MVI56E-MNETCR | North Coast Part # 940399
$5,013.46/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy

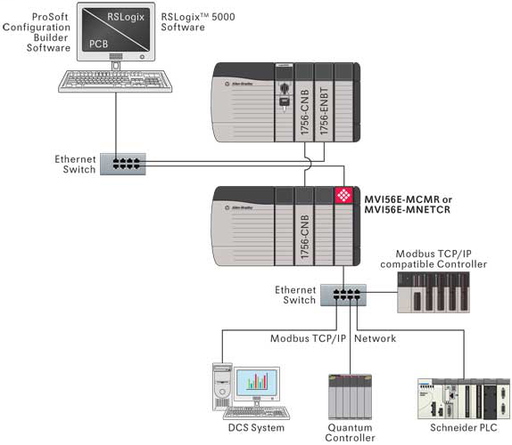

The MVI56E Modbus TCP/IP Multi Client Enhanced Communication Module for Remote Chassis allows Rockwell Automation ControlLogix Programmable Automation Controllers (PACs) to interface easily with multiple Modbus TCP/IP server-compatible instruments and devices. The Multi Client module improves performance when controlling multiple servers on a Modbus TCP/IP network, by supporting up to 30 clients. MVI56E enhancements include configuration and management through the module Ethernet port, CIPconnect technology for bridging through ControlNet and EtherNet/IP networks, and has a web server to access on-board documentation, Add-On Instructions, and sample program files. This module uses a small I/O data image for transfer of data between the module and the ControlLogix processor, making it ideal for ControlNet or Ethernet applications with the module in a remote rack.

Manufacturer Information

Brand
Prosoft Technology

General Product Info

12-Digit UPC
992231000594
Specifications
  • Backward compatible with previous MVI56-MNETCR versions
  • Single-slot 1756 ControlLogix backplane compatible
  • 10/100 Mbps auto crossover detection Ethernet configuration and application port
  • User-definable module data memory mapping of up to 5000, 16-bit registers
  • ProSoft Configuration Builder (PCB) software supported, a Windows-based graphical user interface providing simple product and network configuration
  • Sample ladder logic and Add-On Instructions (AOI) are used for data transfer between module and processor
  • Internal web server provides access to product documentation, module status, diagnostics, and firmware updates
  • 4-character, alpha-numeric, scrolling LED display of status and diagnostics data in plain English - no cryptic error or alarm codes to decipher
  • ProSoft Discovery Service (PDS) software used to locate the module on the network and assign temporary IP address
  • Personality Module - a non-volatile industrial-grade Compact Flash (CF) card used to store network and module configuration for easy disaster recovery, allowing quick in-the-field product replacement by transferring the CF card
