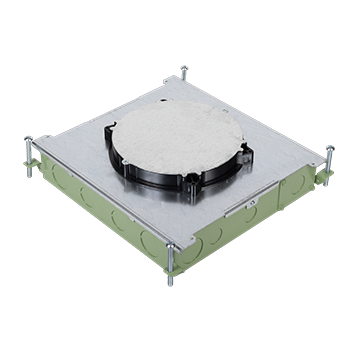

Wiremold RFB6E-OG Resource RFB®E-Series Six Gang On-Grade Floor Box

Manufacturer: Wiremold | Catalog # RFB6E-OG | North Coast Part # 944408

$483.06/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Resource RFB6E-OG Series Six Gang On-Grade Floor Box is a versatile activation solution that provides power and/or communication services to open space areas or directly to the workstation. For use in either on-grade or above grade concrete floors, it is fully adjustable with a tunnel compartment. Supplied with two (2) duplex mounting plates. Other device plates sold separately. Other device plates sold separately. RFB6E-OG Series Floor Boxes are now available with the new Evolution™ Activation Covers. This new cover series incorporates TopGuard protection to prevent water, dirt, and debris from entering the power and communication devices. The Evolution™ Activation Covers are UL Listed to U.S. and Canadian safety standards for tile, terrazzo, carpet, and wood floors. The RFB6E-OG Series has many unique applications, some of which include schools, financial institutions, commercial office buildings, and residences.

Technical Information

Applications
Commercial
Cable Entry
knockouts
Material
Steel
Number of Gangs
6 Gang
Number of Outlets
0
Type
Floor Box

Manufacturer Information

Brand
Legrand
Sub Brand
Wiremold

General Product Info

12-Digit UPC
786776171501
Color
Green
Construction
Assembled
GTiN
00786776171501
Product Series
Resource RFB
Product UPC
78677617150
Weight
12.74 lb

Dimensions

Depth
14-1/2 Inch
Height
3-1/4 Inch
Width
14.63 in

Certifications and Compliance

Buy American Compliant
Y
Certifications
CULUS,NAFTA,ROHS
Country of Origin
USA
Certifications
  • RoHS Compliant
  • NAFTA Compliant
  • cULus Listed
Features

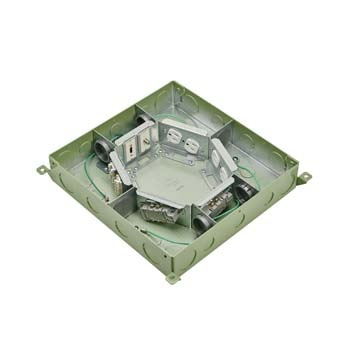

  • Six-compartment box: To accommodate power, communication, or A/V.
  • Pass-around tunneling: Flexible design of RFBE Series floor boxes allows adjacent compartments to be wired together.
  • Accepts 2'' trade size conduit hub (2HUB): Allows a 2'' trade size conduit to attach to the side of box while minimizing concrete pour depth.

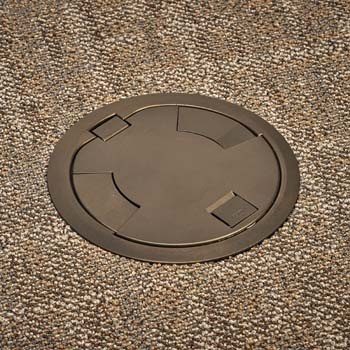

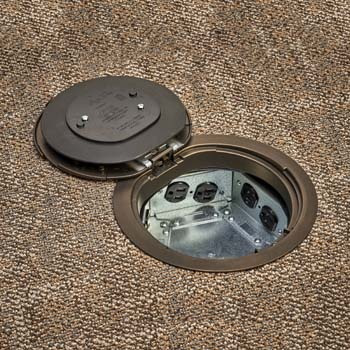

  • Accepts round Evolution series poke-thru covers: Covers come in surface and flush styles, available in brushed aluminum, satin brass plated, satin nickel plated, and six powder-coated finishes to blend in with any space.
  • Suitable for slab-on-grade ground level floors: on-grade version fits in concrete pours of greater than 4-1/16''.
  • Lightweight slab-on-grade version: Special fusion-bonded epoxy corrosion resistant paint finish allows for slab-on-grade use without the weight of cast iron material.
  • Easy installation in many floor surface types: Carpet, Tile, Bare concrete and Terrazzo floors.
