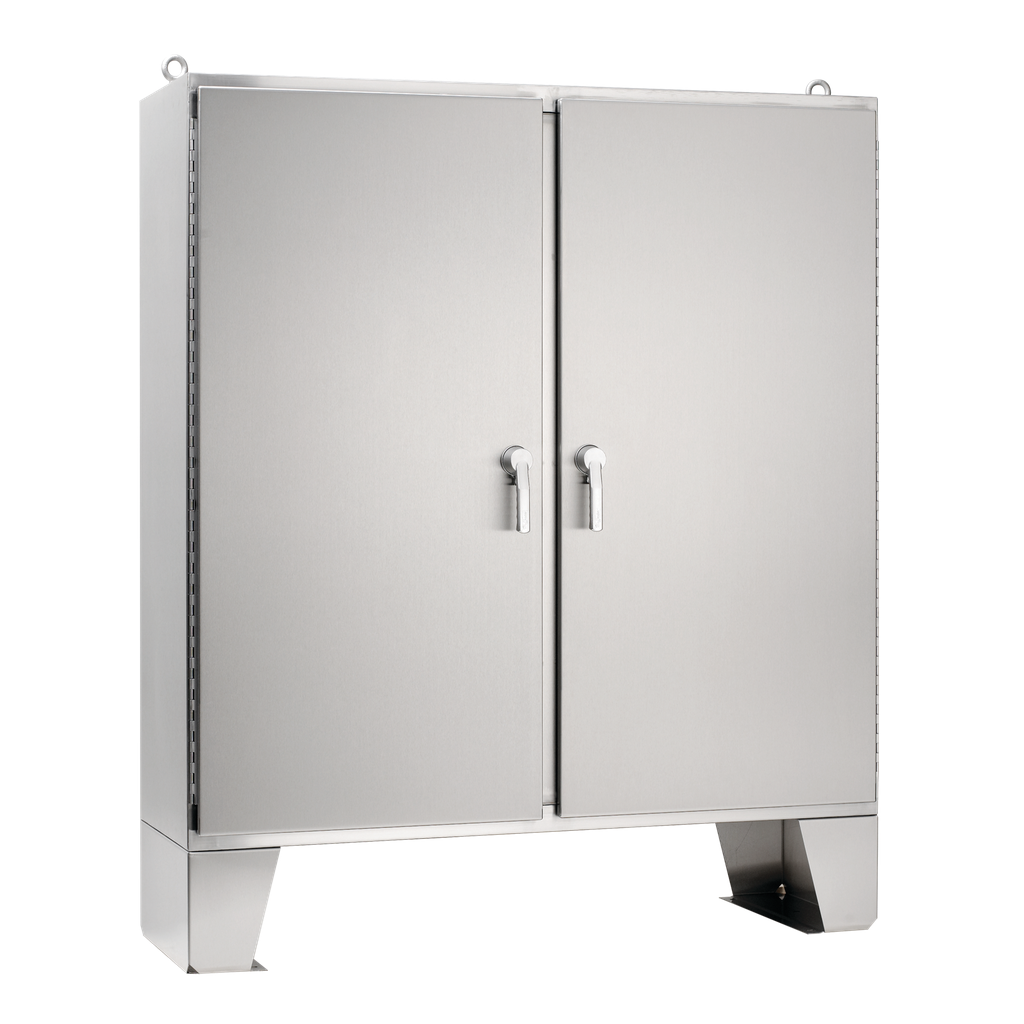

Product image for Hoffman A74H6018SSLP3PT Two-Door with 3-Point Latches, Type 4X, 74.06"2 x 60.06"2 x 18.06"2, Stainless Steel
Email

Hoffman A74H6018SSLP3PT Two-Door with 3-Point Latches, Type 4X, 74.06"2 x 60.06"2 x 18.06"2, Stainless Steel

Manufacturer: nVent Hoffman | Catalog # A74H6018SSLP3PT | North Coast Part # 945998
$30,206.65/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
These two-door enclosures provide industry-leading protection for large components or complex mounting configurations in highly corrosive environments. Three-point latching with the HOFFMAN PowerGlide padlocking handles and a foam-in-place gasket combine convenience with security. They are well-suited for use in petrochemical plants; pulp and paper processing; water treatment facilities; and food, pharmaceutical and packaging applications.

Technical Information

Applications
Controls and Drives; Corrosive Environments; Hygienic Environments
IP Rating
66
Material
Stainless Steel
Size
74.062 x60.062 x18.062 in
Standard
12,13,3R,4,4X,CUL Listed Per CSA C22.2 No 94,File No. E61997,IEC 60529,IP66,Meets NEMA Type 3RX Requirements,NEMA Type 3,Type 3R,UL 508A Listed
Type
Smooth Barrel, Cylindrical

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510262181
Color
Unpainted
Finish
Brushed
GTiN
00783510262181
Product UPC
78351026218
Weight
595 lb

Dimensions

Depth
18.06 Inch
Height
74.06 Inch
Length
68 Inch
Thickness
2.78 mm
Width
38.00 in
Features
  • Backs are 10 or 12 gauge stainless steel with x-form stiffeners
  • Seams continuously welded and ground smooth; no holes or knockouts
  • Removable centerpost for easy panel installation
  • Collar studs provided for mounting optional panels
  • Panel supports included
  • Heavy-duty lifting eyes are Type 316L stainless steel
  • Heavy-duty 3-point latching mechanism operated by Type 316L stainless steel PowerGlide padlocking handles
  • Body flange trough collar excludes liquids and contaminants
  • Heavy-duty stainless steel continuous hinges support each door
  • Bonding provision on doors; grounding studs on body
  • Accessory mounting channel provided in enclosure top
  • Data pocket is high-impact thermoplastic
  • 12-in. (305-mm) removable floor stands are bolted to enclosure
  • Seamless foam-in-place one-piece gasket provides oil-tight and dust-tight seal against contaminants
  • External hardware manufactured of Type 316 stainless steel
