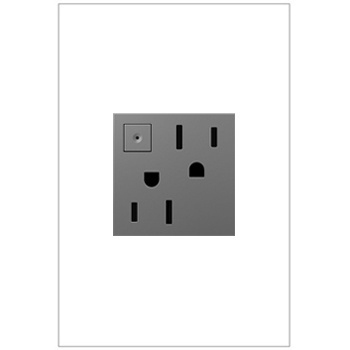

Product image for Pass & Seymour ARPS152-M4 15A 125V Tamper-Resistant Energy Saving Receptacle - Magnesium
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Pass & Seymour ARPS152-M4 15A 125V Tamper-Resistant Energy Saving Receptacle - Magnesium

Manufacturer: Legrand / Pass & Seymour | Catalog # ARPS152M4 | North Coast Part # 947964
$108.89/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page Installation / Instruction Manual CAD Drawing #1
Add stunning, modern style with this outlet from the adorne Collection, while conserving energy when it's not in use. It allows you to stop the flow of power whenever you don't need it, for easy energy management. Made exclusively for use with screwless Wall Plates from the adorne® Collection, sold separately.

Technical Information

Amperage
15 Amp
Applications
Kitchens, Bathrooms, and Computer Rooms
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Indoor Outdoor
Indoor
Material
Thermoplastic
Mounting Type
Box, Wall Duct, Screw
NEMA
5-15R
Number of Gangs
1 Gang
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Outlet Type
Energy Saving On/Off,Indoor,Residential,Tamper-Resistant
TC Connection
Side and Back Wire
Type
Energy-Saving ON/OFF Outlet
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Adorne

General Product Info

12-Digit UPC
785007022728
Color
Magnesium
Finish
Gloss
GTiN
00785007022728
Product UPC
78500702272

Dimensions

Depth
1.73 Inch
Height
1.77 Inch
Warranty Length
Limited Lifetime
Width
2.66 in

Certifications and Compliance

Country of Origin
China
Features

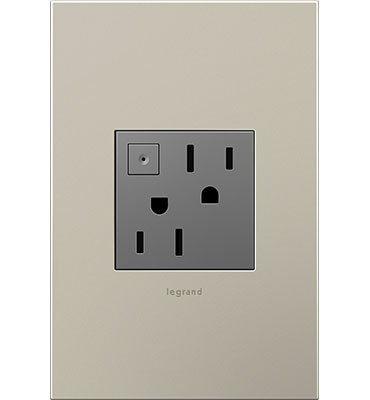

  • GETTING STARTED: For complete installation, device must be paired with an adorne® screwless Wall Plate (not included). Available in a range of contemporary colors and stunning finishes.
  • Installs in 15 minutes or less, fitting into an existing electrical box. No new wiring required for typical installation.

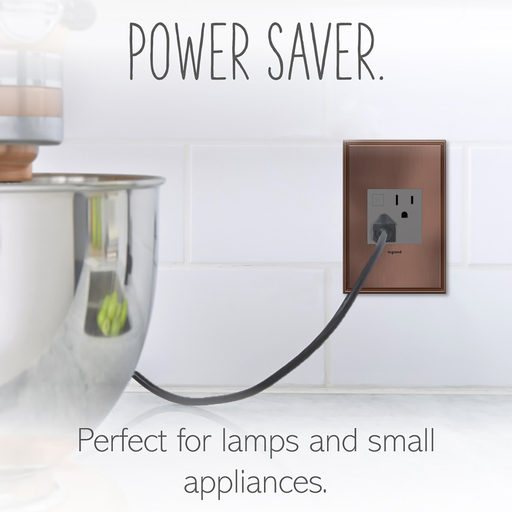

  • Cut power to the outlet when not in use to conserve energy.
  • Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with \"\"invisi-shutters\"\" for an invisible effect.
  • More color options available to fit any style, including finishes to match current hardware and lighting trends.
