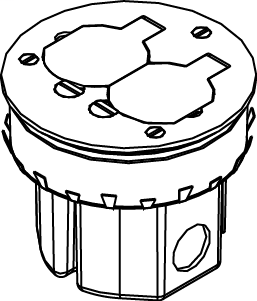

Wiremold 861DB 4" 18 In? Black Wood Floor Box Assembly with Brass Cover

Manufacturer: Wiremold | Catalog # 861DB | North Coast Part # 954698
$154.32/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet Installation / Instruction Manual CAD Drawing #1
Complete with 20A duplex receptacle and brass cover plate. Die-cast aluminum construction with three 1/2'' (12.7mm) knockouts. Two on the sides and one on the bottom. 18 cu. in. (295ml3) of capacity. Requires a 4'' (102mm) diameter hole.

Technical Information

Applications
Open Space Wood or Raised Floor
Cable Entry
(3) 1/2 in knockouts
Material
Aluminum
Mounting Type
Retainer Ring
Number of Outlets
2
Type
2-Outlet

Manufacturer Information

Brand
Wiremold
Sub Brand
Wiremold

General Product Info

12-Digit UPC
786564013259
Color
Brass
Construction
Assembled
GTiN
00786564013259
Product Series
861
Product UPC
78656401325

Dimensions

Depth
4-1/4 Inch
Height
3-1/2 Inch
Width
4.25 in

Certifications and Compliance

Buy American Compliant
Y
Certifications
CULUS,NAFTA,ROHS
Country of Origin
Mexico
Certifications
  • NAFTA Compliant
  • cULus Listed
  • RoHS Compliant
Features
  • Complete with 20A duplex receptacle and brass cover plate. Die-cast aluminum construction with three 1/2'' (12.7mm) knockouts. Two on the sides and one on the bottom. 18 cu. in. (295ml3) of capacity. Requires a 4'' (102mm) diameter hole.
