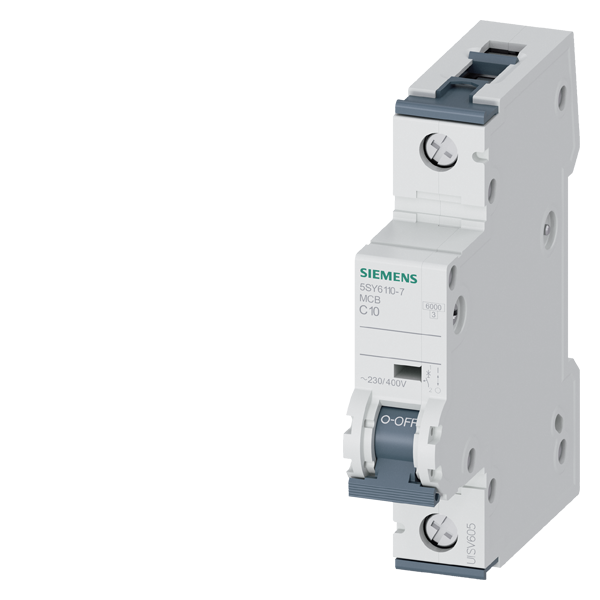

Product image for Siemens 5SY6110-7 10 Amp C Curve 1-Pole Supplementary Protector
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

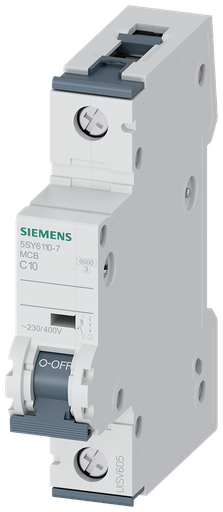

Siemens 5SY6110-7 10 Amp C Curve 1-Pole Supplementary Protector

Manufacturer: Siemens | Catalog # 5SY6110-7 | North Coast Part # 955571
$46.48/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
CIRCUIT BREAKER 230/400V 6KA, 1-POLE, C, 10A, D=70MM

Technical Information

Amperage
10 Amp
Applications
SUPPLEMENTARY PROTECTION
Connection Type
Identical Wire Screw Connections On Line And Load Side.
Current
10 AMP
Frequency
50 Hz
Interrupt Rating
5 kAIC
Material
Thermoplastic
Mounting Type
DIN RAIL
Number of Poles
1 Pole
Response Time
N/A
Short Circuit Current
5 kA
Size
N/A
Standard
CE,EN 60 898,UL 1077,CSA 22.2 NO. 235,IEC,EN 60 947-2
TC Connection
Identical wire screw connections on line and load side.
Type
Miniature Circuit Breaker
Voltage
400 Volt

Manufacturer Information

Brand
Siemens Canada
Sub Brand
SENTRON

General Product Info

12-Digit UPC
754554849973
Class
C
GTiN
04001869246055
Product UPC
75455484997
Weight
0.330 lb

Dimensions

Height
2.95 Inch
Length
3-1/2 Inch
Width
0.650 in

Certifications and Compliance

Country of Origin
Germany

Certifications & Compliance

Green Distribution CO2
0.016 kg
Green End-of-Life CO2
0.162 kg
Green Manufacturing CO2
0.683 kg
Green Total CO2
7.878 kg
Green Transport-to-DC CO2
0.029 kg
Green Use-Phase CO2
6.988 kg
