ABB A47PT NON-INS PIN TERMINALS 22-

Manufacturer: Thomas & Betts | Catalog # A47PT | North Coast Part # 96037
$83.96/c (100 ea)
ea
Order in multiples of 1000 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

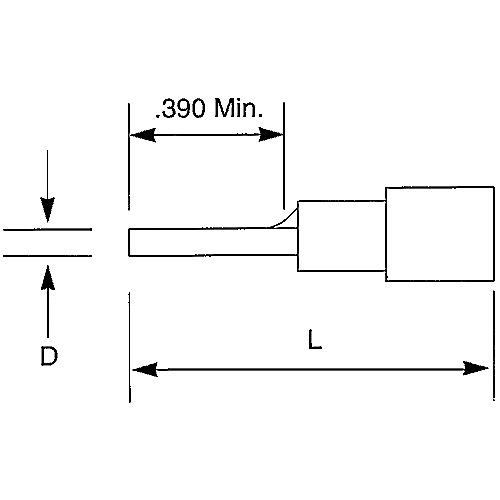

Non-Insulated Pin Terminal, Length .63 Inches, Pin Length .390 Inches, Diameter .075 Inches, Wire Range #22-#18 AWG, Copper, Tin Plated

Technical Information

Conductor Size
22-18 AWG
Insulation Type
Non-Insulated
Material
Copper
Temperature Rating
150 degrees C
Type
Non-covered Ferrules
Voltage
300 Volt
Wire Size
22-18 AWG

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
786210033860
Color
Metallic
Finish
Electro Tin Plated
GTiN
05414363935308
Product UPC
78621003386

Dimensions

Length
0.63 Inch
Features
  • Provides an easy and effective way to terminate stranded wire into European/metric-style terminal blocks.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers. (I.e. 12050 tool and application dies).
