Thomas & Betts F2029 .6 Inch Length 18-17 AWG 1 mm.. Wire Range Nylon Insulated Ferrule

Manufacturer: Thomas & Betts | Catalog # F2029 | North Coast Part # 962
$79.12/c (100 ea)
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 3:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

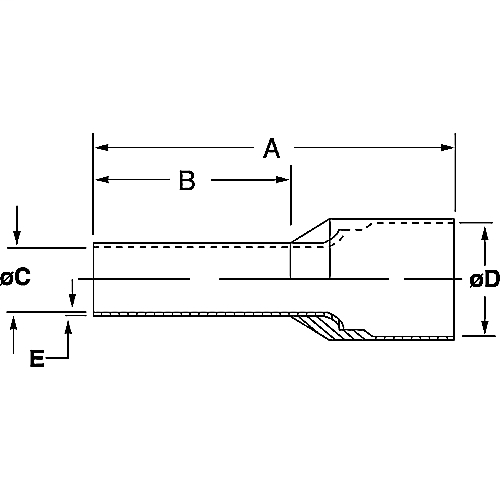

Polypropylene-Insulated Ferrule, Total Length .650 Inches/16.5mm, Pin Length .394 Inches/10mm, Pin Diameter .059 Inches/1.5mm, Base Diameter .118 Inches/3.0mm, Wire Range 18 AWG/1.00mm2, Color Red, Copper, Tin Plated

Technical Information

Conductor Size
18-17 AWG
Contact Material
Copper
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E489056
Strip Length
10 mm
Temperature Rating
105 degrees C
Type
Polypropylene Insulated Ferrule
Wire Size
18-17 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210339986
Color
Red
Finish
Electro Tin Plated
GTiN
05414363151081
Product UPC
78621033998

Dimensions

Overall Length
0.6 in
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
