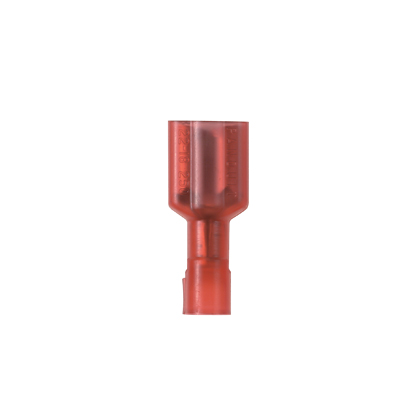

Product image for Panduit DNF18-250FIB-E Loose Piece Disconnect
Image thumbnail 0
Image thumbnail 1
Email

Panduit DNF18-250FIB-E Loose Piece Disconnect

Manufacturer: Panduit | Catalog # DNF18-250FIB-E | North Coast Part # 962059
$219.86/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Specification Sheet
The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a red, nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm.). It is 0.84" (21.3 mm) long and 0.35" (8.9 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bags of 20.

Technical Information

Barrel Type
Butted Seam
Color Coding
Red
Conductor Size
22 AWG
Material
Brass
Max Operating Temperature
105 degrees C
TC Connection
Funnel Entry
Temperature Rating
221 F
Type
Disconnect
Voltage
600 Volt
Wire Size
18 AWG

Packaging

Pkg Qty
20

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983341962
Color
Red
Finish
Tinned
GTiN
00074983341962
Product UPC
07498334196
UNSPSC
39121409

Dimensions

Height
0.22 Inch
Overall Length
0.84 in
Width
0.35 in

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
Mexico
Prop 65
  • No
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
