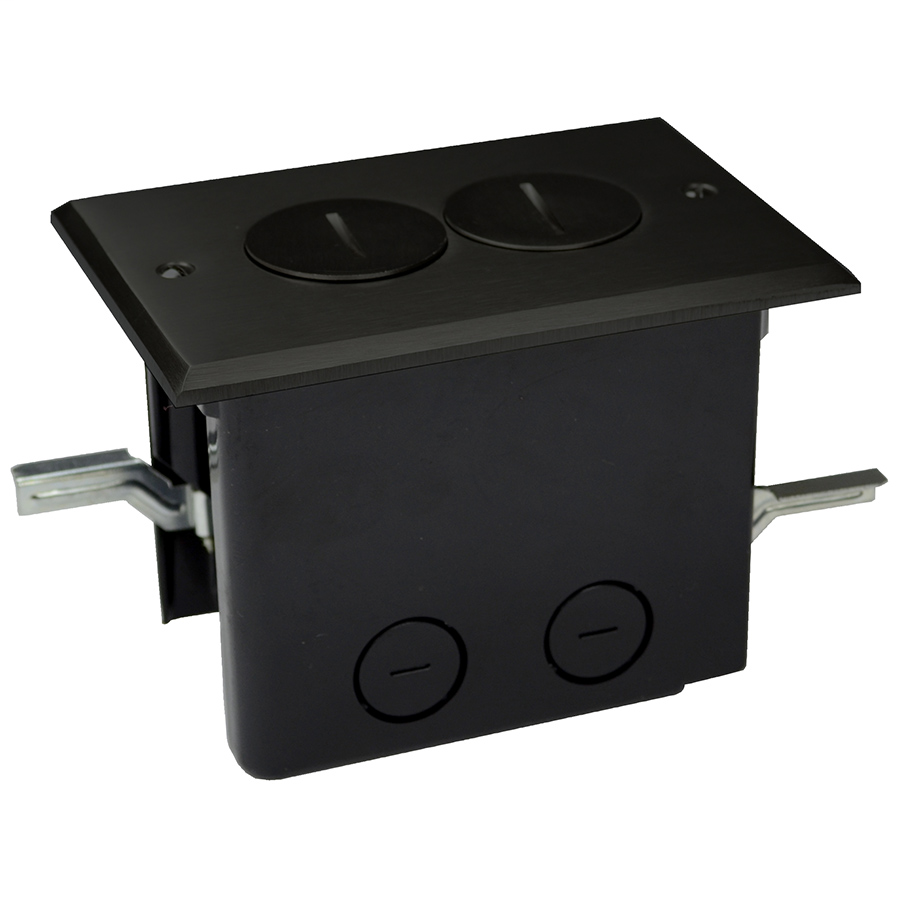

Product image for Allied Moulded Products FB-2DB Rectangular Floor Box Assembly with Dark Bronze Plated Brass Duplex Device Cover
Image thumbnail 0
Image thumbnail 1
Email

Allied Moulded Products FB-2DB Rectangular Floor Box Assembly with Dark Bronze Plated Brass Duplex Device Cover

Manufacturer: Allied Molded Products | Catalog # FB-2DB | North Coast Part # 966154
$17,468.30/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
5 available

For Pick Up

at Auburn Closes 3:00pm PT
5 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Specification Sheet
24.5 Cu. In. Rectangular floor box assembly with a dark bronze plated brass duplex device cover - designed for use in wood floor construction and can be installed with multiple floor substrate materials, meets scrub-water exclusion test, tamper resistant receptacle, simple exterior shape for easy cut-in application - Floor box assembly for residential wood floor cut-in application for use with nonmetallic sheathed cable. Used in areas of the home with large floor space openings where additional electric outlets are required by National Electrical Code to minimize long extension cord runs - Polycarbonate box, brass cover, galvanized steel dust plate, nonmeatallic device with copper terminals and brass ground, closed cell rubber gasket - Size: Box - D=3.5", W=2.498", H=4.312" Cover - D=.217", W=3.5", H=5.125" - Mount with Metal wing brackets/nonmetal flange floor or ceiling compression

Technical Information

Applications
Floor box assembly for residential wood floor cut-in application for use with nonmetallic sheathed cable. Used in areas of the home with large floor space openings where additional electric outlets are required by National Electrical Code to minimize long extension cord runs.
Box Type
Non-Conductive,Non-Metallic
Cable Entry
0.50 in
Cover Material
Metal
Cover Type
Grounded
Material
Brass
Mounting Type
Metal Wing Brackets/nonmetal Flange Floor Or Ceiling Compression
Size
Box - D=3.5", W=2.498", H=4.312" Cover - D=.217", W=3.5", H=5.125"
Standard
UL 514 C
Type
Rectangular floor box assembly with a dark bronze plated duplex device cover

Manufacturer Information

Brand
Allied Moulded Products, Inc.

General Product Info

12-Digit UPC
085339996019
Color
Black/Dark Bronze
Construction
Cast Cover,Injection Molded Box
GTiN
00085339996019
Product UPC
08533999601

Dimensions

Depth
3-1/2 Inch
Height
4.31 Inch
Width
2-1/2 in

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
  • Floor box assembly for residential wood floor cut-in application for use with nonmetallic sheathed cable.  Used in areas of the home with large floor space openings where additional electric outlets are required by National Electrical Code to minimize long extension cord runs.
  • Designed for use in wood floor construction and can be installed with multiple floor substrate materials, meets scrub-water exclusion test, tamper resistant receptacle, simple exterior shape for easy cut-in application
  • FB-DBPLG
  • FB-2
  • FB-2N
  • FB-2DBCVR
Additional Materials
  • Nitrile O-ring
  • Closed cell rubber gasket
  • Plated carbon steel fasteners
  • Galvanized steel dust plate with plated carbon steel fasteners
  • Nonmetallic pop-in cable clamp
  • ANSI / UL514C: File No. QCMZ.E30594
  • FLOOR BOX 714L
