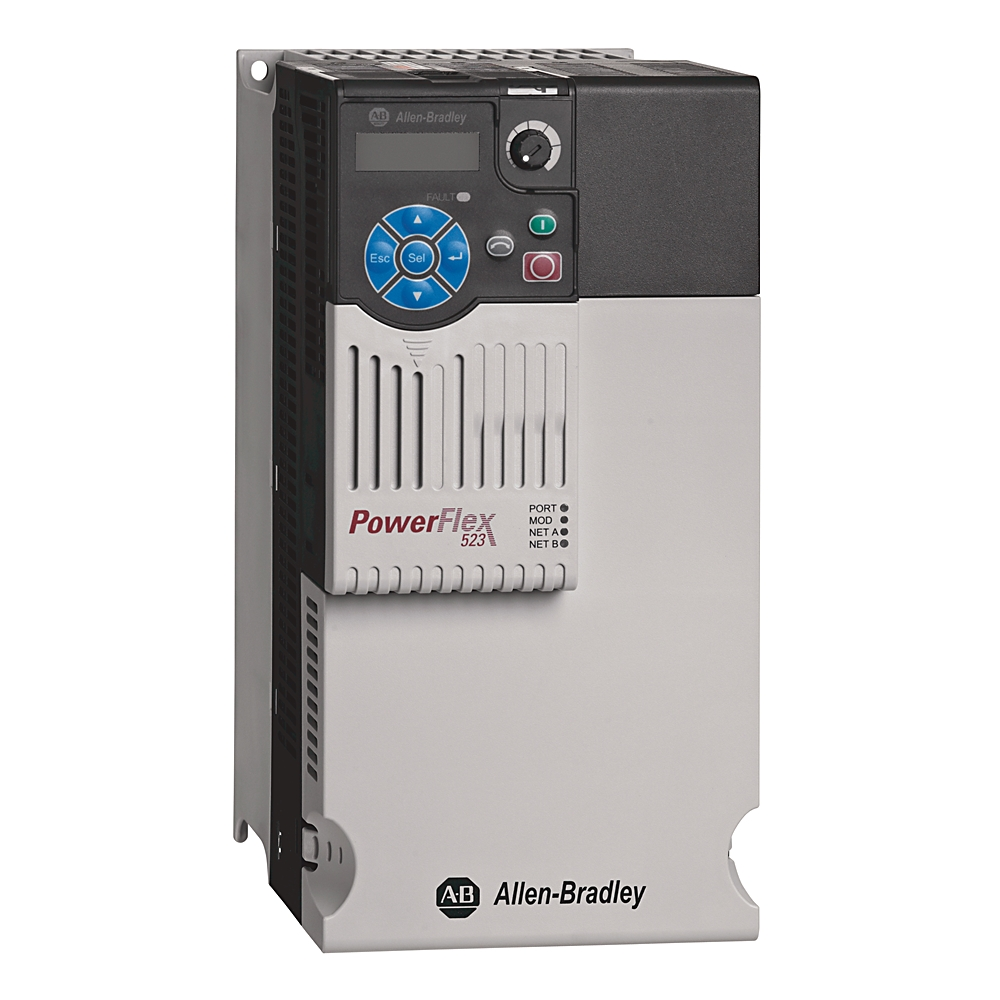

Product image for Allen-Bradley 25A-D037N114 Powerflex 523 18.5 kW 25 Hp AC Drive
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Allen-Bradley 25A-D037N114 Powerflex 523 18.5 kW 25 Hp AC Drive

Manufacturer: Allen-Bradley / Rockwell | Catalog # 25A-D037N114 | North Coast Part # 967343
$4,452.34/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
PowerFlex 523 18.5kW (25Hp) AC Drive

Technical Information

Amperage
37 Amp
Applications
Supporting Protocol for DeviceNet, EtherNet/IP, Industrial Applications, DeviceNet Safety
Enclosure Rating
IP20
Enclosure Type
IP20
IP Rating
IP20
Number of Phases
3 Phase
Output
1 Analog
Output Current
37 A
Power Rating
18.5 kW
Size
E
Standard
C-TICK,CE,CUL,KC,UL
Type
AC Drive
Voltage
480 Volt
Wattage
18.5 kW

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
PowerFlex® 523

General Product Info

12-Digit UPC
885630952468
Environmental Conditions
-20 to 50 C
GTiN
00885630952468
Product UPC
88563095246

Dimensions

Depth
279 Inch
Width
185
Features
  • Offers a wide range of motor control, including volts per hertz, sensorless vector control, and sensorless vector control with Economizer mode
  • Operates in ambient temperature range up to 70°C (158°F) with current derating and a control module fan kit
  • Features a modular design with an innovative, removable control core that allows simultaneous installation and software configuration
  • Offers side-by-side mounting with 50mm (1.96 in) air-flow gap at the top and bottom of the drive
  • Supports low-cost networking through an integrated RS485/DSI port
