Wiremold CRFB4 CRFB-Series Four Gang Round Raised Floor Box

Manufacturer: Wiremold | Catalog # CRFB4 | North Coast Part # 967642
$310.30/ea
ea
Log in or register to view your price, purchase history, and more!
43 available

For Pick Up

at Auburn Closes 3:00pm PT
43 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Specification Sheet Brochure Installation / Instruction Manual CAD Drawing #1

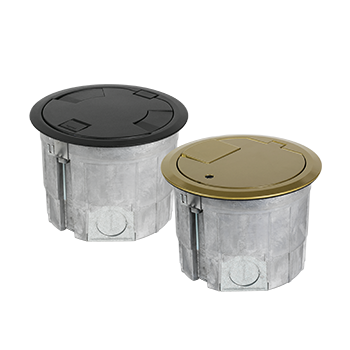

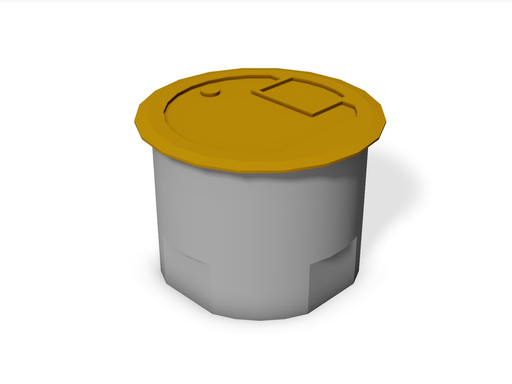

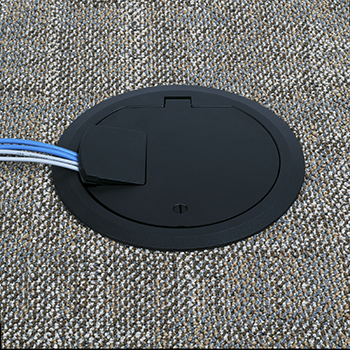

The CRFB4 Floor Box is a 4 compartment round recessed housing designed to accommodate power, communications, and audio/video services for raised and wood floor applications. Popular aplications for the CRFB floor box include: open office environments, conference rooms, computer centers, stages and altars. The CRFB Series floor box can accept the CRFB Series round cover assemblies as well as the 8in Evolution Series Poke-Thru Device covers and are available in six aesthetic colors: black, gray, brass, nickel, bronze, and aluminum. The covers for CRFB housing are sold separately.

Technical Information

Applications
Commercial
Cable Entry
Through Floor
Material
Aluminum
Number of Outlets
0
Type
Floor Box

Manufacturer Information

Brand
Legrand
Sub Brand
Wiremold

General Product Info

12-Digit UPC
786564076834
Color
Aluminum
Construction
Assembled
Finish
Powder Coated
GTiN
00786564076834
Product Series
CRFB
Product UPC
78656407683
Weight
6.51 lb

Dimensions

Depth
8-3/4 Inch
Height
6-1/2 Inch
Width
9.5 in

Certifications and Compliance

Certifications
CULUS,ROHS
Country of Origin
China
Features
  • Accepts the Evolution Series Poke-Thru Covers. The CRFB Series Floor Box has been designed to accept the round 8 Evolution Series Poke-Thru Covers, increasing the ability to match aesthetics throughout the building.
  • Large multi-compartment boxes. Provides adequate wiring capacity for power, communications and audio/video services. The CRFB Series floor boxes have been design to accept a wide range of audio/video devices from most manufacturers.
  • Easy installation in raised and wood floors. CRFB Series Floor Box has been design to be easily installed before or after the floor cover in raised or wood floor applications.
  • Flexible, configurable box design. Flexible box design has been improved with removable modules, tunneling feature and increase knockout sizes.
  • Meets ADA Accessibility Guidelines. Wide trim flange is designed to meet the ADA accessibility Guidelines as it pertains to ADA Standard 4.5, which addresses changes in floor and ground surface levels.
  • Meets NEC Section 300-22(c). The CRFB Series floor boxes are suitable for use in air handling spaces.
  • Listed by Underwriters Laboratories Inc. to U.S. and Canadian safety standards for raised floors and wood floors.
Certifications
  • cULus Listed
  • RoHS Compliant
