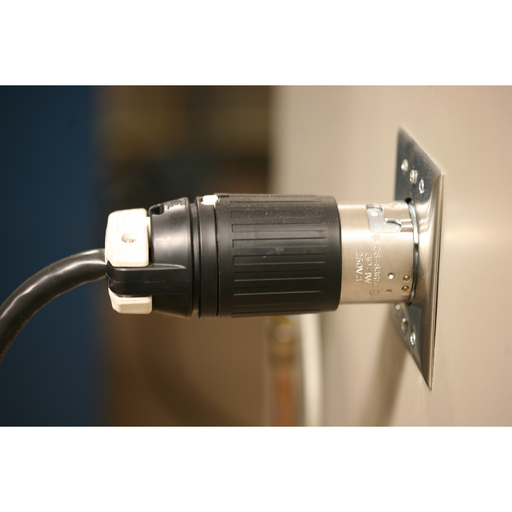

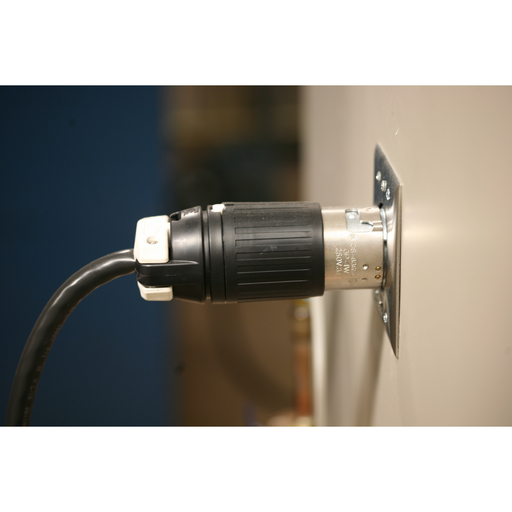

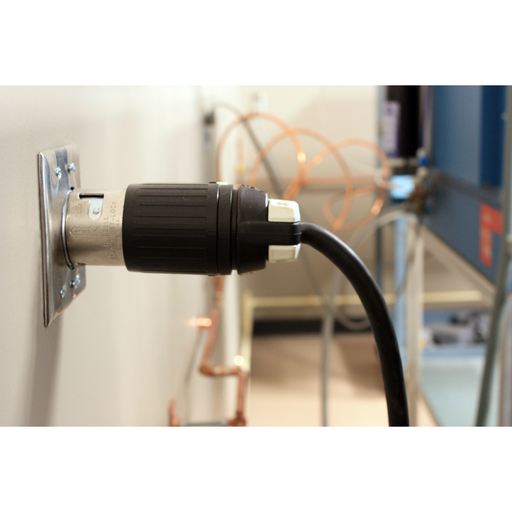

Hubbell CS8365-C 50A 3Ph 250V AC Twist-Lock Black Nylon Plug, Straight

Manufacturer: Hubbell / Kellems | Catalog # CS8365C | North Coast Part # 96794
$241.17/ea
ea
Log in or register to view your price, purchase history, and more!
5 available

For Pick Up

at Auburn Closes 4:00pm PT
5 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Specification Sheet Brochure Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Male Plug, 50A, 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Non- NEMA, Screw Terminal, Black and White

Technical Information

Amperage
50 Amp
Applications
Extra Heavy Duty Industrial Application
Conductor Size
6 AWG
Cord Type
Portable
Current
50 Amp
Grounding
Yes
Material
Composite
Mounting Type
Cord
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,UL 498
TC Connection
Pressure Screw Terminal
Type
Insulgrip, Standard Sized, Straight Angled
Voltage
250 Volt
Wattage
12500 Watt
Wire Count
4
Wire Size
10-6 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585829128
Color
Black,White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585829128
Product UPC
78358582912
Weight
1.25 lb

Dimensions

Height
2.56 Inch
Length
6.37 Inch
Width
2.56 in

Certifications and Compliance

Country of Origin
USA
Features
  • Super tough nylon housing offers better impact qualities
  • Stainless steel shroud protects contacts and prevents mismating
  • Heavy duty two-piece external cord clamp provides maximum strain relief
  • Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
  • Thermoplastic polyester interior provides heat resistance and impact strength
  • Standard Product
