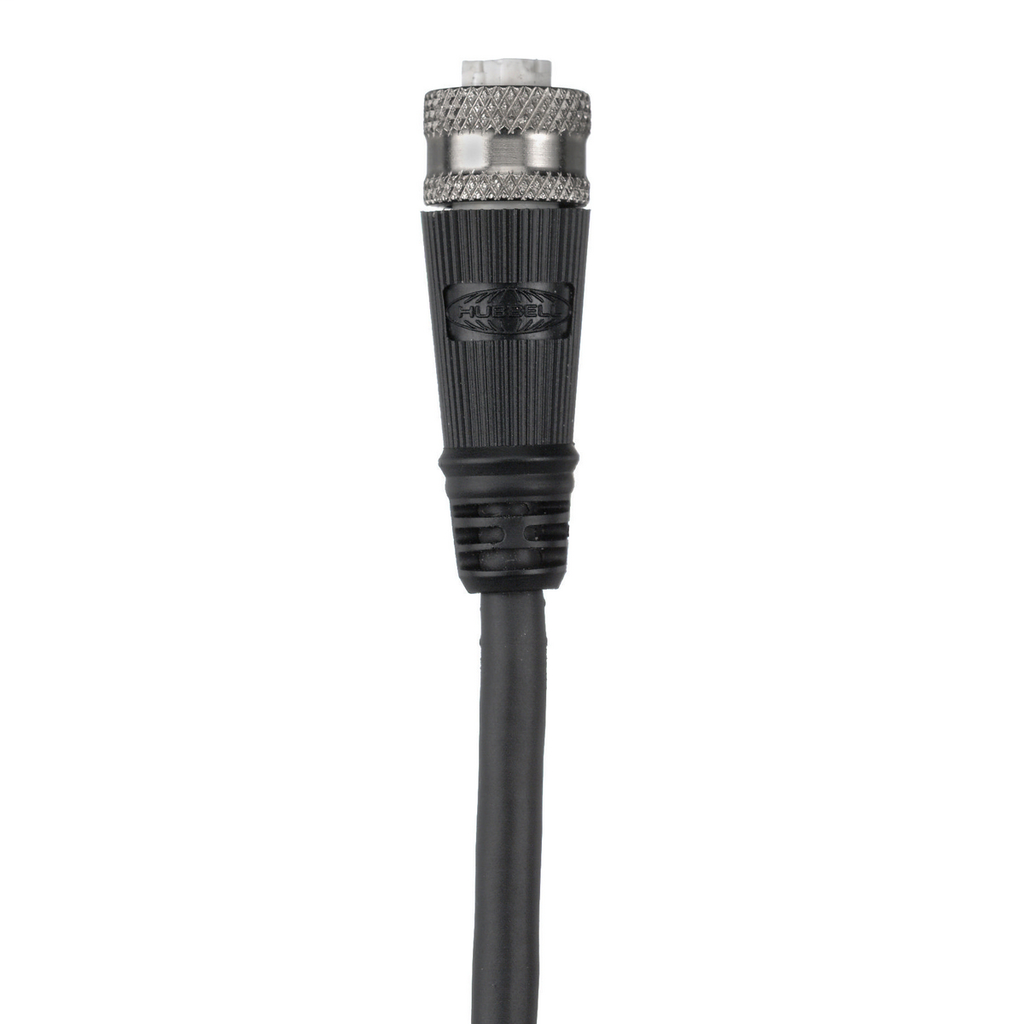

Product image for HWDK MPMS2315 MCQK, ML ST PLG, MET,
Image thumbnail 0
Image thumbnail 1
Email

HWDK MPMS2315 MCQK, ML ST PLG, MET,

Manufacturer: Hubbell / Kellems | Catalog # MPMS2315 | North Coast Part # 969310
$100.73/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Micro-Quick Control Connectors, Male Plug, 3P, Dual Key, 5M

Technical Information

Amperage
3 Amp
Applications
Quick Connect/Disconnect Signal and Control
Conductor Material
Copper
Conductor Type
Copper
Connector Material
Copper
Connector Type
Male (Plug) Straight, Free Conductor End
Contact Material
Beryllium Copper,Brass
Insulation Material
Nylon 6/6
Material
PVC
Number of Conductors
3-Pole
Number of Poles
3 Pole
Standard
C22.2 No. 182.3,CSA,CSA C22.2 No. 94.2-07,File No. E192071,UL 2238,UL50E
Temperature Rating
-20 degrees C to 105 degrees C
Type
Dual Key
Voltage
300 Volt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Micro-Quick™

General Product Info

12-Digit UPC
783585225272
Color
Black
GTiN
00783585225272
Product UPC
78358522527

Dimensions

Cable Length
5 m
Diameter
0.59 Inch
Height
1.1 Inch
Length
196.85 Inch
Width
12.000 in

Certifications and Compliance

Certifications
C22.2 No. 182.3 And CSA C22.2 No. 94,File No. E192071. CSA Certified,UL 2238 And UL50
Country of Origin
USA
Performance
  • Electrical - Amperage - #22 AWG - 2&3P=5A, 4&5P=4A, 6P=3A
  • Electrical - Contact Resistance - Less than or Equal to 5 Milliohm
  • Electrical - Isolation Resistance - Greater than or Equal to 10 Megaohm
  • Electrical - Voltage Rating - 300V DC/300V AC
  • Environmental - Corrosion Resistance - 500 hours salt spray per MIL-STD-1344, Method 1001
  • Environmental - Ingress Protection - IP66 Suitability
  • Environmental - Moisture Protection - UL Type 4, 4X, 12 and 13
  • Environmental - Operating Temperature - #22 AWG PVC cable: -20°C to 105° C
  • Environmental - Vibration Resistance - 10 - 2,000 Hz @15g per MIL-STD-1344, Method 2005
Features
  • Black overmold and cable
  • Dual Key
  • Insulgrip connector body design
  • Beryllium copper socket contacts
  • Plating resists corrosion in high abuse environments
Industry Standard(s)
  • CSA Certified, C22.2 No. 182.3 and CSA C22.2 No. 94.2-07
  • UL 2238 and UL50E, File No. E192071
