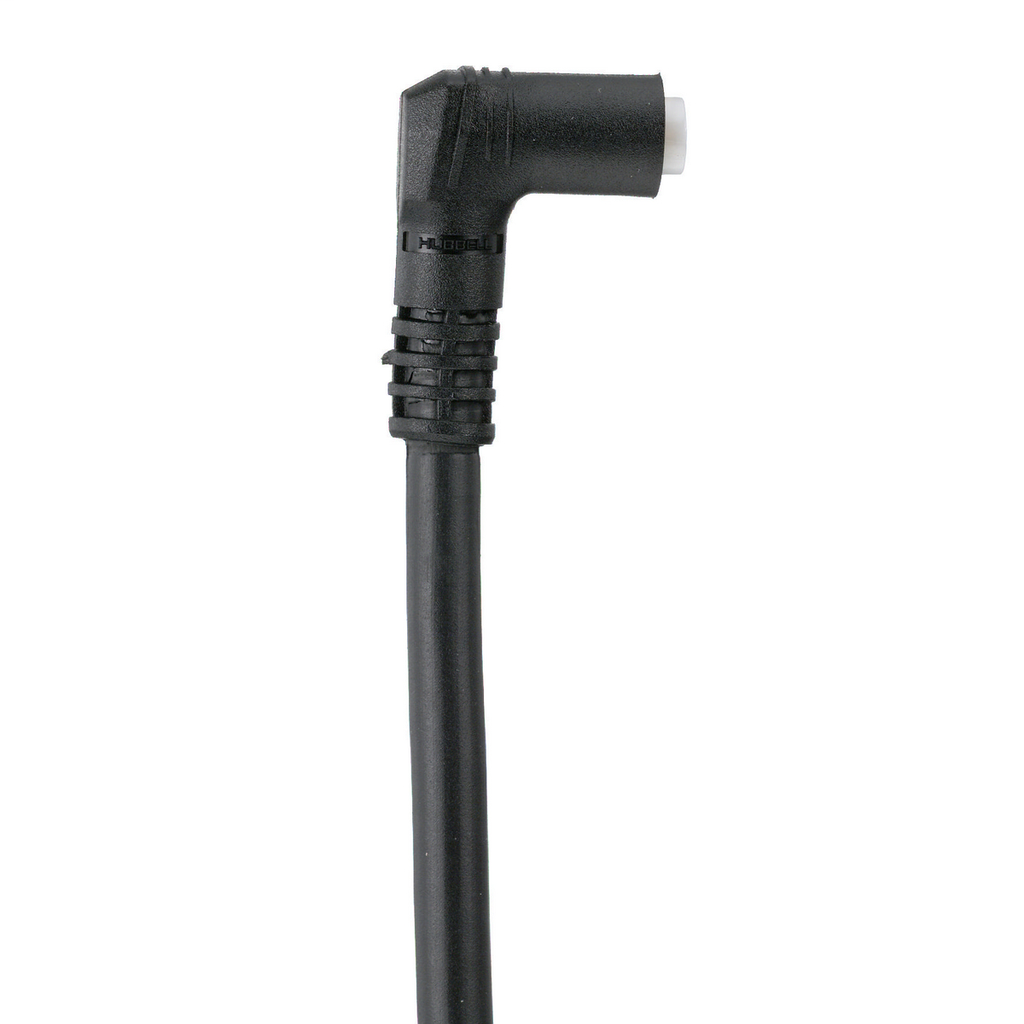

Product image for HCI NCSA4105 N-QCK, SNAP, FEM ANG P
Image thumbnail 0
Image thumbnail 1
Email

HCI NCSA4105 N-QCK, SNAP, FEM ANG P

Manufacturer: Hubbell / Kellems | Catalog # NCSA4105 | North Coast Part # 969386
$55.07/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Nano-Quick Control Connectors, Snap-On, Angled Female Plug, 4P, 5M

Technical Information

Amperage
4 Amp
Applications
Quick Connect/Disconnect Signal and Control
Conductor Material
Copper
Conductor Type
Copper
Contact Material
Beryllium Copper,Brass
Insulation Material
Nylon 6/6
Number of Conductors
4-Pole
Number of Poles
4 Pole
Standard
C22.2 No. 182.3,CSA,CSA C22.2 No. 94.2-07,File No. E1,UL 2238,UL50E
Temperature Rating
-20 To 105 degrees C
Type
Female Angle Plug

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Nano-Quick Signal and Control Devices

General Product Info

12-Digit UPC
783585956077
Color
Black
GTiN
00783585956077
Product UPC
78358595607

Dimensions

Diameter
0.39 Inch
Height
0.9 Inch
Length
196.85 Inch
Width
12.000 in

Certifications and Compliance

Certifications
C22.2 No. 182.3 And CSA C22.2 No. 94,File No. E192071. CSA Certified,UL 2238 And UL50
Country of Origin
USA
Features
  • Black overmold and cable
  • Standard Product
  • O-Rings for moisture protection
  • Insulgrip connector body design
  • Nickel contact plating for superior conductivity
Performance
  • Electrical - Amperage - 4A
  • Electrical - Contact Resistance - Less than or Equal to 5 Milliohm
  • Electrical - Isolation Resistance - Greater than or Equal to 1000 Megaohm
  • Electrical - Voltage Rating - 125V AC/75V DC
  • Environmental - Corrosion Resistance - 500 hours salt spray per MIL-STD-1344, Method 1001
  • Environmental - Ingress Protection - IP66 Suitability
  • Environmental - Moisture Protection - UL Type 4, 4X, 12 and 13
  • Environmental - Operating Temperature - PVC Cable: -20° to 105° C
  • Environmental - Vibration Resistance - 10 - 2,000 Hz @15g per MIL-STD1344, Method 2005
Industry Standard(s)
  • CSA Certified, C22.2 No. 182.3 and CSA C22.2 No. 94.2-07
  • UL 2238 and UL50E, File No. E1
