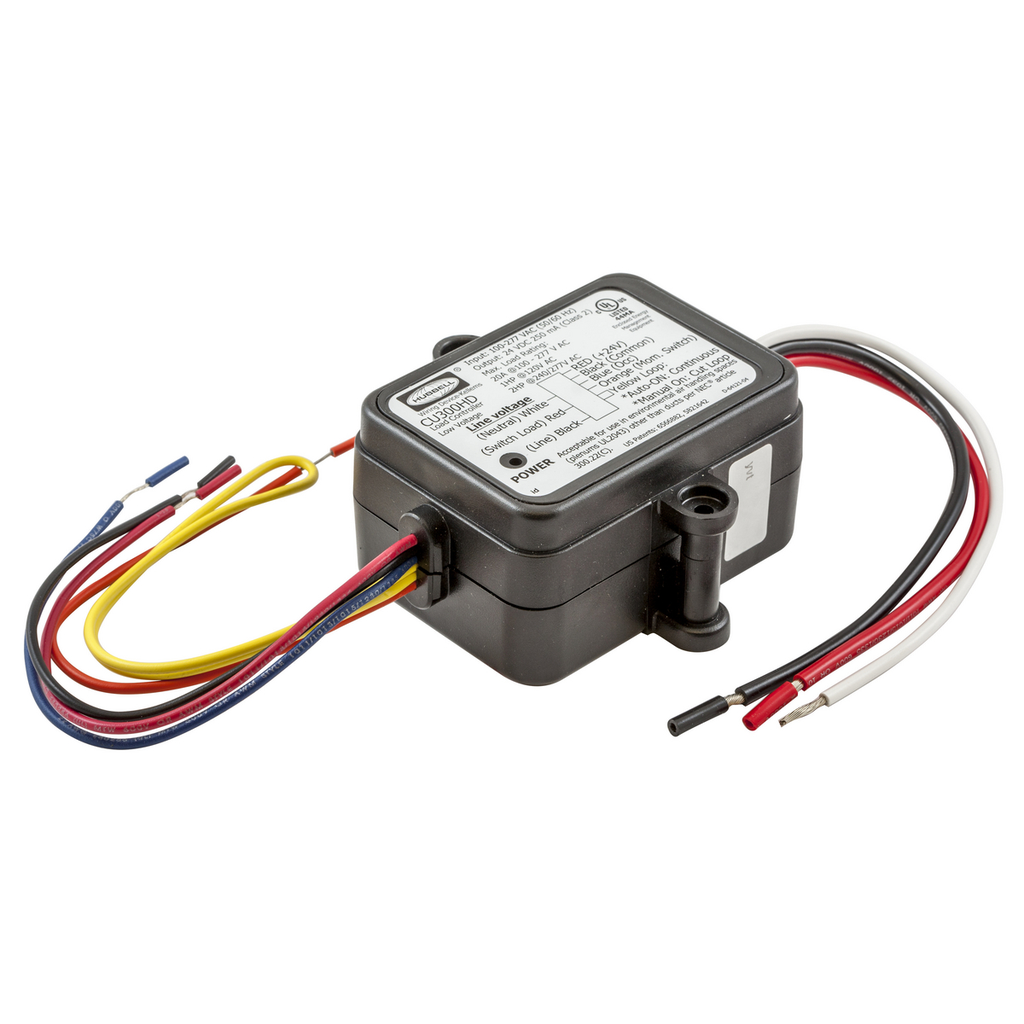

Product image for Hubbell CU300HDCTRL UNIT, 120-277V, 20A, 1 HD RLY, LATCHING
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell CU300HDCTRL UNIT, 120-277V, 20A, 1 HD RLY, LATCHING

Manufacturer: Hubbell / Kellems | Catalog # CU300HD | North Coast Part # 972204
$164.93/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Control, Occupancy Sensor, Control Unit, 120/277V AC, Heavy Duty Relay, Latching

Technical Information

Applications
Latching
Flamability Class
UL 94-5VA
Frequency
50/60 Hz
Material
Thermoplastic
Operating Temperature
0 To 40 degrees C
Size
4 in x 3.4 in x 1.73 in
Standard
ASHRAE 90.1,UL2043 Plenum Rated Per NEC® 2014 300.22(C)(3)
Type
Accessories
Voltage
24 Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
H-MOSS

General Product Info

12-Digit UPC
783585256207
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585256207
Product Series
Ceiling Mount,High/Low Bay PIR,Dual,Control Units,Ultrasonic,Wall Mount,Passive Infrared
Product UPC
78358525620

Dimensions

Height
1.73 Inch
Length
4 Inch
Width
3.4 in

Certifications and Compliance

Country of Origin
China
Features
  • Robust latching relay provides unsurpassed and unrestricted performance
  • Controlled by Hubbell occupancy sensors
  • Auto or manual \"ON\" operation
  • Powers up to six low voltage sensors
  • Plenum rated
