Thomas & Betts RB14-8F Nylon-Insulated Fork Terminal - #18-14, #8bolt

Manufacturer: Thomas & Betts | Catalog # RB14-8F | North Coast Part # 97816
$252.24/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
500 available

For Pick Up

at Auburn Opens Thursday 4:00am PT
500 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Specification Sheet

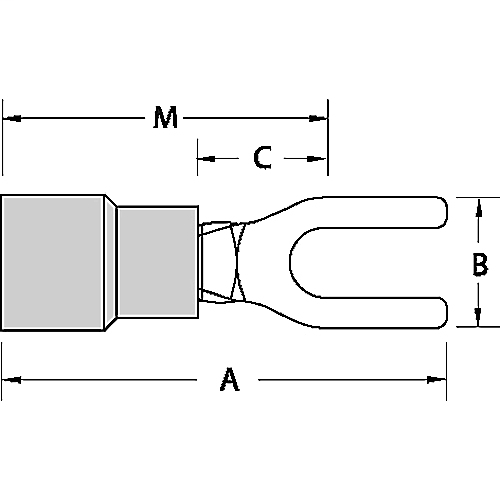

Nylon Insulated Fork Terminal, Length .87 Inches, Width .31 Inches, Maximum Insulation .162, Bolt Hole #8, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated

Technical Information

Conductor Size
18-14 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Stud Size
#8
Temperature Rating
105 degrees C
Terminal Type
RB
Type
Short Sleeve
Voltage
600 Volt
Wire Size
18-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210804088
Color
Blue
Finish
Electro Tin Plated
GTiN
05414363158448
Product UPC
78621080408

Dimensions

Height
3 Inch
Thickness
.03 in
Width
1.1 in
Certifications
  • UL
  • CSA
Features
  • Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep. Nylon jacket is color-coded.
