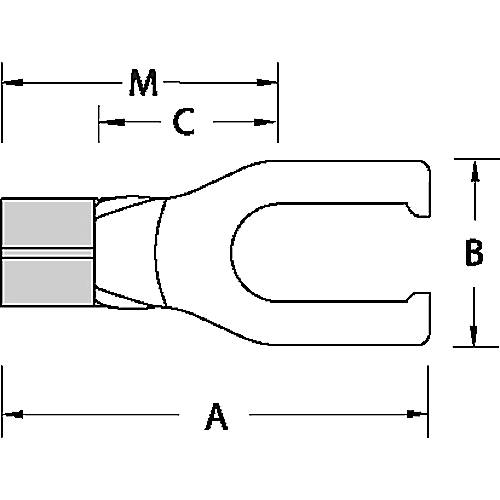

Image thumbnail 2
Email

HEAT-SHR LKG FORK TERM, 12-10, 1/4,

Manufacturer: Thomas & Betts | Catalog # RCS10-14FLX | North Coast Part # 97944
$555.05/c (100 ea)
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Heat Shrinkable Locking Fork Terminal, Length 1.350 Inches, Width .49 Inches, Maximum Insulation .250, Bolt Hole 1/4 Inch Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated

Technical Information

Conductor Size
12-10 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Type
Heat-Shrinkable Polyolefin
Material
Copper
Stud Size
1/4 in
Temperature Rating
105 degrees C
Terminal Type
RCS
Type
Heat Shrinkable, Locking
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210873695
Color
Yellow
Finish
Tin Plated
GTiN
05414363159582
Product UPC
78621087369

Dimensions

Height
3 Inch
Length
1.35 Inch
Width
1.3 in
Features
  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
Notes
  • Not available on Mylar Tape.
Certifications
  • UL
  • CSA
