P&S PS372030W 20A 347VAC B+S WIRE C

Manufacturer: Legrand / Pass & Seymour | Catalog # PS372030W | North Coast Part # 983586

$28.16/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 11 to 17 days

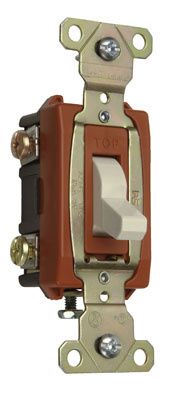

Canadian 3way Switch, Back & Side Wire, 20amp 347volt, Ivory

Technical Information

Amperage
20 Amp
Applications
Industrial
Blade Dimensions
3.53 in
Contact Rating
20amp, 347vac
Duty Rating
Extra Heavy Duty
Grade
Industrial
Number of Poles
3 Pole
Size
3.53"
Type
Canadian, 3 Way
Voltage
347 Volt
Wattage
3 Watt

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

Color
White
GTiN
00785007196283
Product UPC
78500719628
UNSPSC
39121507

Dimensions

Depth
1.073 Inch
Height
3.531 Inch
Width
1.320 in

Certifications and Compliance

Country of Origin
Mexico
  • Cam controls fast ''make'' and positive ''break'' to minimize arcing.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
  • Strap nickel-plated steel with integral ground.
  • Back body made of glass-reinforced nylon.
  • Oversized silver alloy contacts for long life and better heat dissipation.
  • Grounding terminal is standard.
  • Shallow design for ease of installation.
  • External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • Locking support provides resistance to face and back body separation.
  • Heavy-duty bumper pads for quiet operation.
  • High strength thermoplastic polycarbonate toggle.
