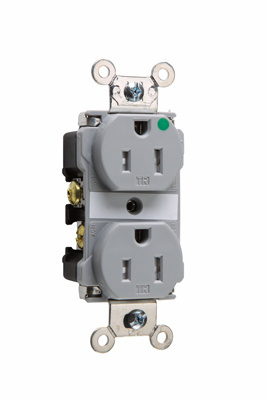

Product image for Pass & Seymour TR62HGRY Gray Back and Side Wire 15 Amp 125 Volt Tamper Resistant Hospital Grade Receptacles
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour TR62HGRY Gray Back and Side Wire 15 Amp 125 Volt Tamper Resistant Hospital Grade Receptacles

Manufacturer: Legrand / Pass & Seymour | Catalog # TR62HGRY | North Coast Part # 983746
$62.11/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure
Tamper-Resistant Hospital Grade Receptacles, Smooth Face, Back and Side-Wire, 15A, 125A

Technical Information

Amperage
15 Amp
Applications
Commercial Applications
Capacity
Duplex
Conductor Size
14-10 AWG
Grade
Hospital
Material
Thermoplastic
NEMA
5-15R
Number of Phases
3 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
4.3 x 1.8 x 1.3 in
Type
Receptacles
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007145205
Color
Gray
GTiN
00785007145205
Product UPC
78500714520
UNSPSC
39121406

Dimensions

Depth
0.9 Inch
Height
2-3/4 Inch
Width
1.625 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • Thermoplastic dual mechanism shutter system to help prevent insertion of foreign objects.
  • Smooth face.
  • Exclusive patented feature, circuit label on face allows permanent circuit identification.
  • Extra heavy-duty brass, one-piece mounting strap with integral ground.
  • One-piece, nickel-plated brass, triple-wipe power contacts for lasting retention.
  • Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
  • Impact-resistant nylon face and back body.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Two drive screws anchor strap to back body and face.
  • Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
  • External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
