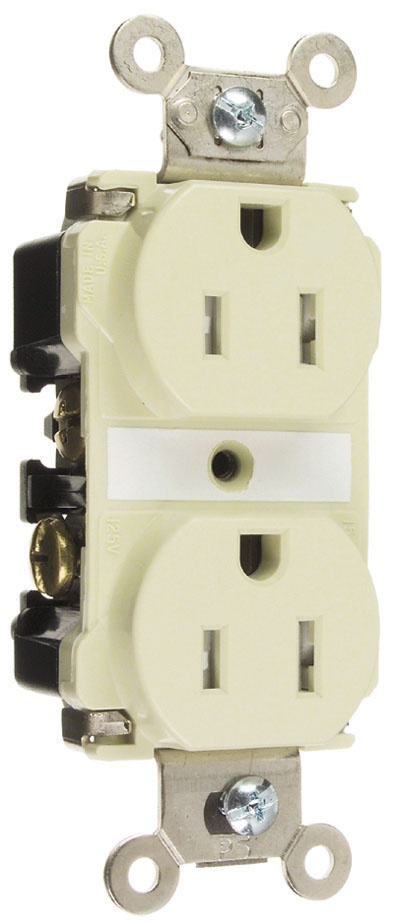

Pass & Seymour TR62-I 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R Ivory Nylon Tamper-Resistant Duplex Receptacle

Manufacturer: Legrand / Pass & Seymour | Catalog # TR62I | North Coast Part # 983749

$27.05/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 11 to 17 days
Tamper-Resistant Spec Grade Duplex Receptacle Back & Side Wire 15amp 125volt BrownFor detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Amperage
15 Amp
Applications
Commercial
Capacity
Duplex
Dielectric Strength
Withstands 2000V minimum
Grade
Specification
Material
Nylon
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3.0
Size
1.625 L x .900 W x 3.281 H In
TC Connection
Back and side wire
Type
Receptacles
Voltage
125 Volt
Wire Size
14-10 AWG

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

Color
Ivory
GTiN
00785007145229
Product UPC
78500714522
UNSPSC
39121406

Dimensions

Depth
0.9 Inch
Height
3.281 Inch
Width
1.625 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
  • Thermoplastic dual mechanism shutter system to help prevent insertion of foreign objects.
  • One-piece, brass, triple-wipe power contacts for lasting retention.
  • External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.
  • Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
  • Extra heavy-duty brass, one-piece mounting strap with integral ground.
  • For covering patents, see www.legrand.us/patents.
  • Exclusive patented feature, circuit label on face allows permanent circuit identification.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Two drive screws anchor strap to back body and face.
  • Auto-ground clip assures positive ground.
  • Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
  • Impact-resistant nylon face and back body.
