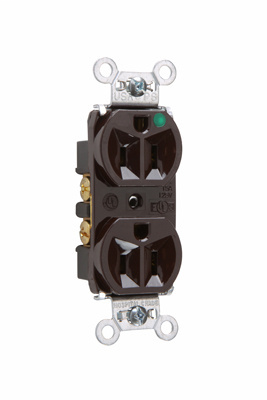

Product image for Pass & Seymour 8200-H Heavy-Duty Hospital Grade Compact Design Duplex Receptacle, Back & Side Wire, 15A 125V - Brown
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Pass & Seymour 8200-H Heavy-Duty Hospital Grade Compact Design Duplex Receptacle, Back & Side Wire, 15A 125V - Brown

Manufacturer: Legrand / Pass & Seymour | Catalog # 8200H | North Coast Part # 983762
$12.10/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Heavy-Duty Hospital Grade Compact Design Duplex Receptacle Back & Side Wire 15amp 125volt Gray

Technical Information

Amperage
15 Amp
Applications
For Commercial Use
Capacity
Duplex
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Contact Material
Triple-Wipe Brass
Dielectric Strength
2000 V
Duty Rating
Heavy Duty
Grade
Hospital
Material
Nylon
Mounting Type
Wall
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.322 L x .780 W x 3.281 H In
TC Connection
Back and side wire
Temperature Rating
-40 degrees C
Type
Heavy Duty, Compact, Corrosion-Resistant
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007820010
Color
Brown
GTiN
00785007820010
Product UPC
78500782001
UNSPSC
39121406

Dimensions

Depth
0.78 Inch
Height
3.281 Inch
Width
1.322 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • Impact-resistant nylon face.
  • One-piece heat-treated triple-wipe brass power contacts.
  • Easily accessible break-off line contact connecting tab for split circuit wiring.
  • Corrosion-resistant, zinc-plated steel strap is locked in.
  • Internal screw-pressure-plate back wire and side wire line terminals accept #14 : #10 AWG copper or copper-clad conductors.
  • High strength thermoplastic back body.
  • Auto-ground clip assures positive ground.
  • Compact design for easy installation.
  • Tri-drive terminal and mounting screws.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
  • Federal Spec Listed
