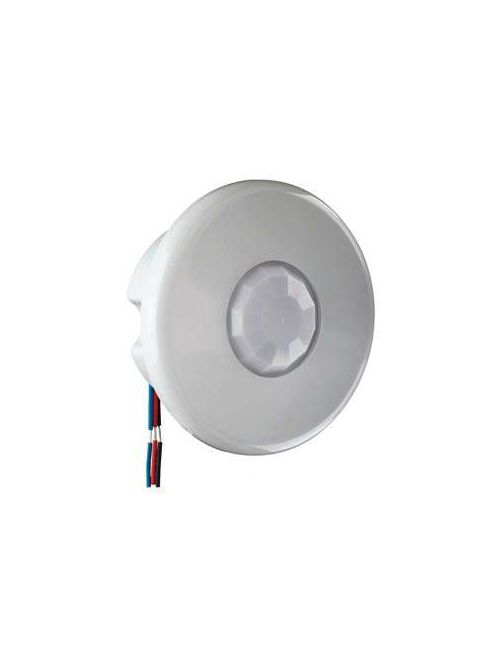

Pass & Seymour CS1200 Pir Ceilingsensor,24Vdc Input, Coverage 360Degree,1200 Sq.Ft.

Manufacturer: Legrand / Pass & Seymour | Catalog # CS1200 | North Coast Part # 987707
$208.36/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
PIR Ceiling Sensor, 24VDC Input, Coverage 360degree, 1200 Sq.Ft.

Technical Information

Amperage
11 mA
Mounting Type
Ceiling
Type
Occupancy
Voltage
24 Volt

Manufacturer Information

Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007703849
Color
White
GTiN
00785007703849
Product UPC
78500770384
UNSPSC
39121559

Dimensions

Depth
2.2 Inch
Diameter
3.3 Inch

Certifications and Compliance

Country of Origin
China
Features
  • ASIC technology reduces components and enhances reliability.
  • Pulse count processing eliminates false offs without reducing sensitivity.
  • Detection signature analysis eliminates false triggers and proves immunity to RFI and EMI.
  • Low-profile design ensures a clean and uncluttered ceiling appearance.
  • User-adjustable time delay from 15 seconds to 30 minutes by two minute increments.
  • Sensitivity is programmed through a DIP switch and has four settings from minimum to maximum.
  • Dual-element, temperature compensated pyro-electric sensor.
  • Mounting options: ceiling tile or 3.0 inch round mudring.
  • Units per power pack: up to 13.
  • cULus listed.
  • 5-year warranty.
  • For covering patents, see www.legrand.us/patents.
Eco-Benefit Information
  • RoHS Compliant
  • LEED Contribution: Yes
