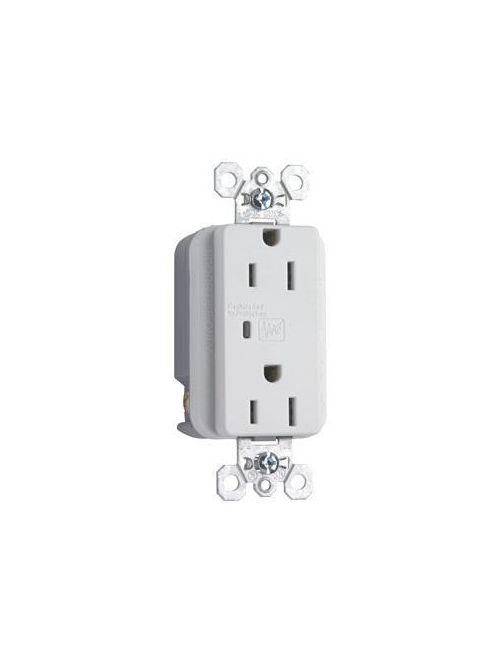

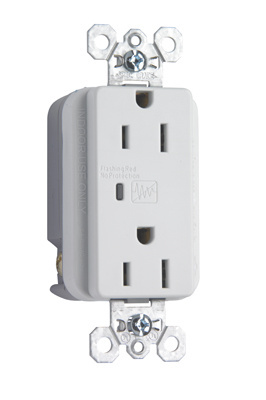

Product image for Pass & Seymour 5252-WSP 15A 125V 2-Pole 3-Wire NEMA 5-15R Surge Protective Duplex Receptacle - White
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour 5252-WSP 15A 125V 2-Pole 3-Wire NEMA 5-15R Surge Protective Duplex Receptacle - White

Manufacturer: Legrand / Pass & Seymour | Catalog # 5252-WSP | North Coast Part # 989058
$80.34/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Surge Protective Duplex Receptacle offers increased transient protection, reliability and protection notification (LED Indicator only). Back & Side Wire, 15amp 125volt, White.

Technical Information

Amperage
15 Amp
Grade
Specification
Type
Duplex
Voltage
125 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007194449
Color
White
GTiN
00785007194449
Product UPC
78500719444
UNSPSC
39121406

Dimensions

Depth
1.225 Inch
Height
3.82 Inch
Width
1.750 in

Certifications and Compliance

Country of Origin
China
Features
  • Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place.
  • LED Indication: Steady green = protected, Flashing re = not protected, OFF = no power to unit
  • Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation.
  • Impact-resistant thermoplastic exterior resists impacts and scrapes.
  • Triple-wipe, copper-alloy contacts for superior, more dependable connection.
  • External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept #14 - #10 AWG copper or copper-clad, solid or stranded conductors. External pressure plate feature allows two conductors to be terminated by a single screw.
  • Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection. Protection response time in less than one nanosecond.
  • For covering patents, see www.legrand.us/patents.
Certifications
  • cULus Listed
