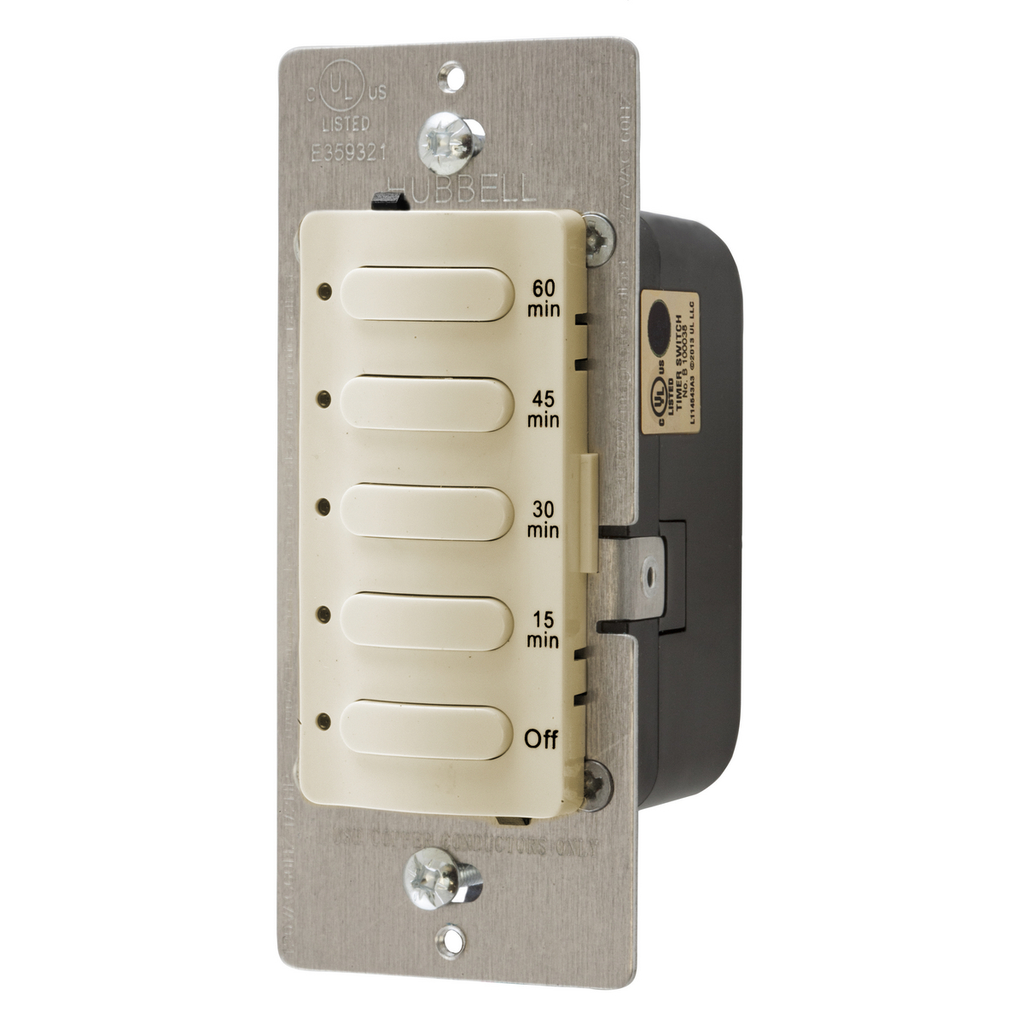

Product image for HWDK DT5060I TIMER 60MIN, 8.3A 120/
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

HWDK DT5060I TIMER 60MIN, 8.3A 120/

Manufacturer: Hubbell / Kellems | Catalog # DT5060I | North Coast Part # 992759
$64.55/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual

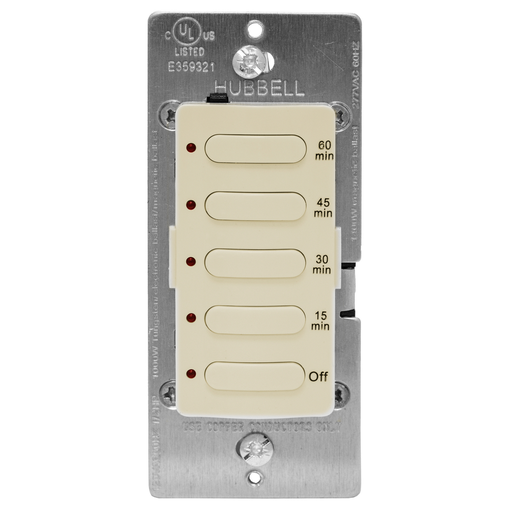

Timer Switches, Single Pole, 8.3A120/277V AC, 60 Minute Delay Time Out, Ivory

Technical Information

Action
Push Button
Amperage
8.3 Amp
Applications
Wall Mounted
Conductor Size
14 AWG
Contact Rating
Inductive and Resistive Loads
Material
Polycarbonate
Number of Poles
1 Pole
Operating Temperature
11 degrees C
Size
3.81 in x 1.75 in x 2.27 in
Standard
CEC Title 24,CULus,Meets ASHRAE 90.1,UL60730-1,UL60730-2
TC Connection
Terminal Screws
Temperature Rating
32 - 104 degrees F
Type
Standard
Voltage
120/277 Volt
Wattage
2300 Watt
Wire Length
6 in
Wire Size
14 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Switches and Lighting Controls

General Product Info

12-Digit UPC
783585256436
Color
Ivory
Environmental Conditions
Indoor Use Only
GTiN
00783585256436
Product Series
Fixed Countdown
Product UPC
78358525643

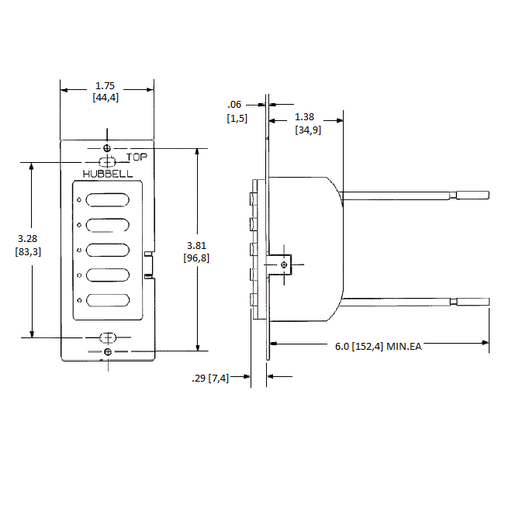

Dimensions

Height
2.27 Inch
Length
3.81 Inch
Width
1.75 in

Certifications and Compliance

Country of Origin
China
Features
  • 60 minute timer
  • Pre-set 5 button selection with permanent time markings
  • Manual override to OFF
  • Alert to OFF function - red LED will flash during the final 30 seconds
  • Designed for use on 120 or 277V AC circuits
