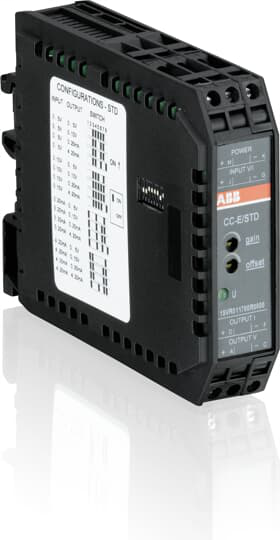

ABB 1SVR011700R0000 CC-E/STD ANLOG
Product image thumbnail 0
Product image thumbnail 1
$523.73/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABB
Mfg Catalog # 1SVR011700R0000
North Coast Part # 876871

Specifications

Ordering

  • EAN: 4013614351297
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85369095

Container Information

  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 81 mm
  • Package Level 1 Depth / Length: 27 mm
  • Package Level 1 Height: 109 mm
  • Package Level 1 Gross Weight: 0.108 kg
  • Package Level 1 EAN: 4013614351297

Dimensions

  • Product Net Width: 22.5 mm
  • Product Net Height: 75 mm
  • Product Net Depth / Length: 107 mm
  • Product Net Weight: 0.088 kg

Technical

  • Function: Standard signalsMultifunction
  • Input Signal: 0.5 V / 0 ... 10 V / 0 ... 20 mA / 4 ... 20 mA
  • Output Signal: 0.5 V / 0 ... 10 V / 0 ... 20 mA / 4 ... 20 mA
  • Rated Control Supply Voltage (Us): 24 V DC

Environmental

  • RoHS Status: Following EU Directive 2011/65/EU

Classifications

  • Object Classification Code: T
  • ETIM 4: EC002653 - Isolation amplifier
  • ETIM 5: EC002653 - Isolation amplifier
  • ETIM 6: EC002653 - Isolation amplifier
  • ETIM 7: EC002653 - Isolation amplifier
  • eClass: 7.0 27210120

Overview

GTiN 00662019101644
Width 22.5 mm
Type Signal Converters
Applications For 0-20 mA, 0-10 V input and 0-20 mA, 0-10 V output applications
Height 2.953 in
Family Brand Name Thomas & Betts
Product UPC 66201910164
