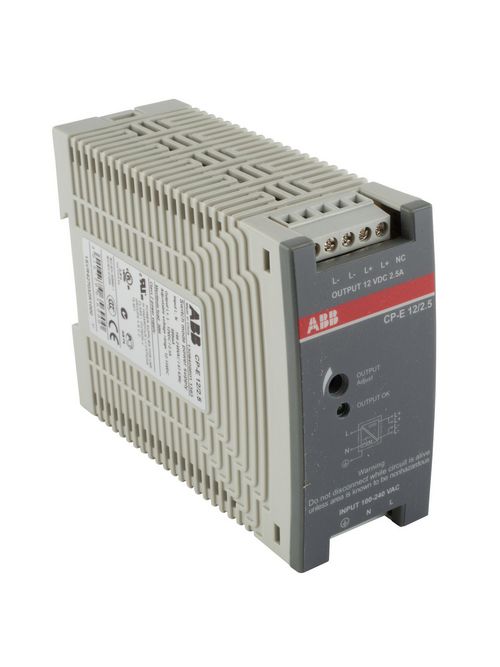

ABB 1SVR427032R1000 CP-E 12/2.5 POW
$117.88/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABBEMPLV
Mfg Catalog # 1SVR427032R1000
North Coast Part # 548779

Specifications

Ordering

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85044090

Dimensions

  • Product Net Width: 40.5 mm
  • Product Net Height: 90 mm
  • Product Net Depth / Length: 114 mm
  • Product Net Weight: 0.287 kg

Container Information

  • Package Level 1 Width: 132 mm
  • Package Level 1 Depth / Length: 154 mm
  • Package Level 1 Height: 58 mm
  • Package Level 1 Gross Weight: 0.358 kg
  • Package Level 1 EAN: 4016779656900
  • Package Level 1 Units: 1 piece

Technical

  • Function: Switch mode power supply
  • Number of Phases: 1
  • Rated Input Voltage (UIN): 100 ... 240 V AC
  • Input Voltage (Uin): 85 ... 264 V AC90 ... 375 V DC
  • Rated Frequency Limits: 47 ... 63 Hz
  • Characteristic of Output: U/I characteristic curve
  • Rated Output Power: 30 W
  • Output Power: 30 W
  • Rated Output Voltage: 12 V DC
  • Output Voltage (Uout): 12 V DC
  • Rated Output Current: 2.5 A
  • Output Current: 2.5 A
  • Rated Insulation Voltage (Ui): Input Circuit / Output Circuit 3 VInput Circuit / PE 2 V
  • Degree of Protection: Housing IP20Terminals IP20
  • Pollution Degree: 2
  • Connecting Capacity Input Circuit: Flexible with Ferrule 0.2 ... 2.5 mm²Rigid 0.2 ... 2.5 mm²
  • Connecting Capacity Output Circuit: Flexible with Ferrule 0.2 ... 2.5 mm²Rigid 0.2 ... 2.5 mm²
  • Tightening Torque: Input Circuit 0.6 N·mOutput Circuit 0.6 N·m
  • Wire Stripping Length: Input Circuit 6 mmOutput Circuit 6 mm
  • Minimum Mounting Distance: Electrical Conductive Board, Horizontal 25 mmElectrical Conductive Board, Vertical 25 mmOther Device Same Type, Horizontal 25 mmOther Device Same Type, Vertical 25 mm
  • Mounting Position: Position 1
  • Mounting on DIN Rail: TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
  • Standards: ANSI/ISA-12.12CAN/CSA C22.2 No.107.1CAN/CSA C22.2 No.213CAN/CSA C22.2 No.223CAN/CSA C22.2 No.60950EN 50581IEC/EN 60950-1IEC/EN 61000-6-2IEC/EN 61000-6-3UL 1310UL 508UL 60950

Environmental

  • Ambient Air Temperature: Operation -40 ... +70 °CStorage -40 ... +85 °C
  • RoHS Status: Following EU Directive 2011/65/EU

Technical UL/CSA

  • Connecting Capacity Input Circuit UL/CSA: Rigid 24-14 AWG
  • Connecting Capacity Output Circuit UL/CSA: Rigid 24-14 AWG
  • Tightening Torque UL/CSA: Input Circuit 5 in·lbOutput Circuit 5 in·lb

Electromagnetic Compatibility

  • Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2: Level 4 Air Discharge 15 kVLevel 4 Contact Discharge 8 kV
  • Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3: Level 3 10 V/m
  • Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4: Level 4 Power Supply Port Signal 4 kV
  • Surge Immunity acc. to IEC 61000-4-5: Level 3 Line-to-Line 2 kVLevel 4 Line-to-Ground 4 kV
  • Conducted Disturbances Immunity acc. to IEC 61000-4-6: Level 3 10 V
  • Electromagnetic Compatibility (EMC): Immunity - Class BEmission - Class B

Classifications

  • Object Classification Code: T
  • ETIM 4: EC002540 - DC-power supply
  • ETIM 5: EC002540 - DC-power supply
  • ETIM 6: EC002540 - DC-power supply
  • ETIM 7: EC002540 - DC-power supply
  • eClass: 7.0 27049002
  • UNSPSC: 39121004

Overview

GTiN 00662019151779
Length 4.49 in
Width 1.59 in
Type Power Supplies
Material Plastic
Applications For applications that require cost effective 12 VDC at 2.5 amps power supply
Height 3.54 in
Family Brand Name Thomas & Betts
Standard EN 60950-1IEC,CSA C22.2 No.213CAN,ANSI,CSA C22.2 No.107.1CAN,EN 61000-6-2IEC,EN 61000-6-3UL 1310UL 508UL 60950,ISA-12.12CAN,CSA C22.2 No.223CAN,CSA C22.2 No.60950EN 50581IEC
