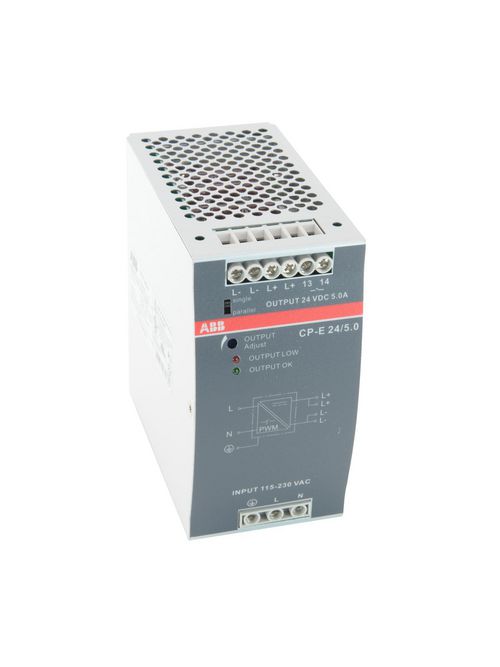

Thomas & Betts 1SVR427034R0000 90 to 132/180 to 264 VAC 210 to 375 VDC Input 24 VDC 5 Amp Output Power Supply
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$174.53/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABBEMPLV
Mfg Catalog # 1SVR427034R0000
North Coast Part # 998001

Specifications

Ordering

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85044090

Dimensions

  • Product Net Width: 63.2 mm
  • Product Net Height: 123.6 mm
  • Product Net Depth / Length: 123.6 mm
  • Product Net Weight: 0.882 kg

Container Information

  • Package Level 1 Width: 162 mm
  • Package Level 1 Depth / Length: 160 mm
  • Package Level 1 Height: 85 mm
  • Package Level 1 Gross Weight: 0.998 kg
  • Package Level 1 EAN: 4016779669689
  • Package Level 1 Units: 1 piece

Technical

  • Function: Switch mode power supply
  • Number of Phases: 1
  • Rated Input Voltage (UIN): 115 / 230 V AC
  • Input Voltage (Uin): 90 ... 132 V AC180 ... 264 V AC210 ... 375 V DC
  • Rated Frequency Limits: 47 ... 63 Hz
  • Characteristic of Output: U/I characteristic curve
  • Rated Output Power: 120 W
  • Output Power: 120 W
  • Rated Output Voltage: 24 V DC
  • Output Voltage (Uout): 24 V DC
  • Rated Output Current: 5 A
  • Output Current: 5 A
  • Rated Insulation Voltage (Ui): Input Circuit / Output Circuit 3 VInput Circuit / PE 2 V
  • Degree of Protection: Housing IP20Terminals IP20
  • Pollution Degree: 2
  • Connecting Capacity Input Circuit: Flexible with Ferrule 0.2 ... 4 mm²Rigid 0.2 ... 6 mm²
  • Connecting Capacity Output Circuit: Flexible with Ferrule 0.2 ... 4 mm²Rigid 0.2 ... 6 mm²
  • Tightening Torque: Input Circuit 1 N·mOutput Circuit 0.62 N·m
  • Wire Stripping Length: Input Circuit 8 mmOutput Circuit 8 mm
  • Minimum Mounting Distance: Electrical Conductive Board, Horizontal 25 mmElectrical Conductive Board, Vertical 25 mmOther Device Same Type, Horizontal 25 mmOther Device Same Type, Vertical 25 mm
  • Mounting Position: Position 1
  • Mounting on DIN Rail: TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
  • Standards: ANSI/ISA-12.12CAN/CSA C22.2 No.107.1CAN/CSA C22.2 No.213CAN/CSA C22.2 No.60950EN 50581IEC/EN 60950-1IEC/EN 61000-6-2IEC/EN 61000-6-3UL 508UL 60950

Environmental

  • Ambient Air Temperature: Operation -35 ... +70 °CStorage -40 ... +85 °C
  • RoHS Status: Following EU Directive 2011/65/EU

Technical UL/CSA

  • Connecting Capacity Input Circuit UL/CSA: Rigid 24-10 AWG
  • Connecting Capacity Output Circuit UL/CSA: Rigid 24-10 AWG
  • Tightening Torque UL/CSA: Input Circuit 9 in·lbOutput Circuit 5.5 in·lb

Electromagnetic Compatibility

  • Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2: Level 4 Air Discharge 15 kVLevel 4 Contact Discharge 8 kV
  • Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3: Level 3 10 V/m
  • Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4: Level 4 Power Supply Port Signal 4 kV
  • Surge Immunity acc. to IEC 61000-4-5: Level 3 Line-to-Line 2 kVLevel 4 Line-to-Ground 4 kV
  • Conducted Disturbances Immunity acc. to IEC 61000-4-6: Level 3 10 V
  • Electromagnetic Compatibility (EMC): Immunity - Class BEmission - Class B

Classifications

  • Object Classification Code: T
  • ETIM 4: EC002540 - DC-power supply
  • ETIM 5: EC002540 - DC-power supply
  • ETIM 6: EC002540 - DC-power supply
  • ETIM 7: EC002540 - DC-power supply
  • eClass: 7.0 27049002
  • UNSPSC: 39121004
  • E-Number (Sweden): 5248134

Overview

Item Long Description Power supply with 90-132 VAC or 180-264 VAC or 210-375 VDC input voltage and 24 VDC at 5 amp rated output
GTiN 00804325456265
Length 4.87 in
Width 2.49 in
Type Power Supplies
Material Plastic
Applications For applications that require cost effective 24 VDC at 5 amps power supply
Height 4.87 in
Family Brand Name Thomas & Betts
Voltage 24 Volt
Mounting Type DIN Rail
Standard ANSI,CSA C22.2 No.107.1CAN,CSA C22.2 No.213CAN,CSA C22.2 No.60950EN 50581IEC,EN 60950-1IEC,EN 61000-6-2IEC,EN 61000-6-3UL 508UL 60950,ISA-12.12CAN
Input Voltage 24 V
Amperage 5 Amp
Blade Dimensions 4.87 in L x 2.49 in W x 4.87 in H
