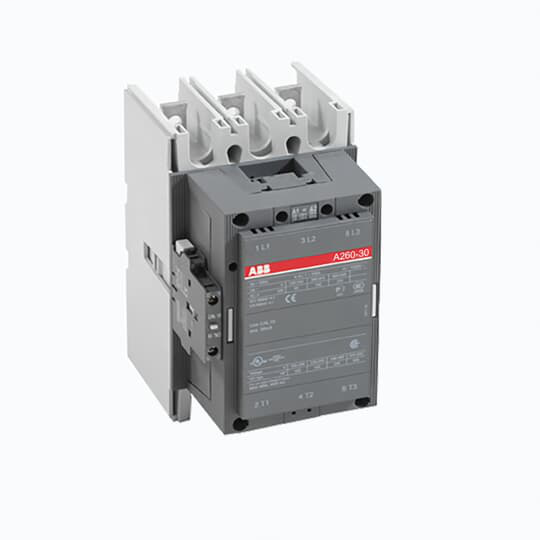

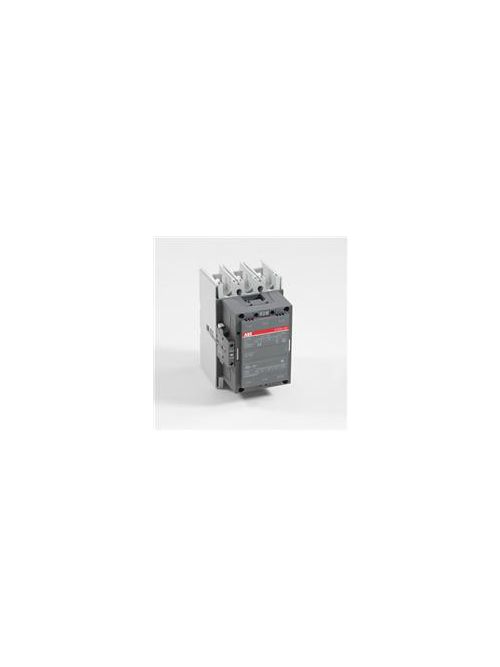

Thomas & Betts A260-30-11-84 3-Phase 220-230 Volt 50 Hz/230-240 Volt 60 Hz Contactor
$2,234.40/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABBEMPLV
Mfg Catalog # A260-30-11-84
North Coast Part # 996805

Specifications

Classifications

  • Object Classification Code: Q
  • ETIM 4: EC000066 - Magnet contactor, AC-switching
  • ETIM 5: EC000066 - Magnet contactor, AC-switching
  • ETIM 6: EC000066 - Power contactor, AC switching
  • ETIM 7: EC000066 - Power contactor, AC switching
  • UNSPSC: 39121529
  • IDEA Granular Category Code (IGCC): 4755 >> Contactors
  • E-Number (Norway): 4115214
  • E-Number (Sweden): 3227883

Container Information

  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 203 mm
  • Package Level 1 Depth / Length: 245 mm
  • Package Level 1 Height: 188 mm
  • Package Level 1 Gross Weight: 6.1 kg
  • Package Level 1 EAN: 7320500203354

Technical UL/CSA

  • Maximum Operating Voltage UL/CSA: Main Circuit 600 V
  • General Use Rating UL/CSA: (600 V AC) 350 A
  • Horsepower Rating UL/CSA: (200 V AC) Three Phase 75 hp(208 V AC) Three Phase 75 hp(220 ... 240 V AC) Three Phase 100 hp(440 ... 480 V AC) Three Phase 200 hp(550 ... 600 V AC) Three Phase 250 hp

Environmental

  • Ambient Air Temperature: Close to Contactor for Storage -40 ... +70 °CClose to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... +50 °CClose to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... +70 °C
  • Maximum Operating Altitude Permissible: 3000 m
  • Resistance to Shock acc. to IEC 60068-2-27: Shock Direction: A 5 K40Shock Direction: B1 5 K40Shock Direction: B2 5 K40Shock Direction: C1 5 K40Shock Direction: C2 5 K40
  • RoHS Status: Following EU Directive 2011/65/EU

Technical

  • Number of Main Contacts NO: 3
  • Number of Main Contacts NC: 0
  • Number of Auxiliary Contacts NO: 1
  • Number of Auxiliary Contacts NC: 1
  • Rated Operational Voltage: Main Circuit 690 V
  • Rated Frequency (f): Main Circuit 50/60 Hz
  • Conventional Free-air Thermal Current (Ith): acc. to IEC 60947-4-1, Open Contactors q = 40 °C 400 A
  • Rated Operational Current AC-1 (Ie): (690 V) 40 °C 400 A(690 V) 55 °C 350 A(690 V) 70 °C 290 A
  • Rated Operational Current AC-3 (Ie): (220 / 230 / 240 V) 55 °C 260 A(380 / 400 V) 55 °C 260 A(415 V) 55 °C 260 A(440 V) 55 °C 240 A(500 V) 55 °C 240 A(690 V) 55 °C 220 A
  • Rated Operational Power AC-3 (Pe): (220 / 230 / 240 V) 80 KWT(380 / 400 V) 140 KWT(415 V) 140 KWT(440 V) 140 KWT(500 V) 180 KWT(690 V) 200 KWT
  • Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1: 8 x Ie AC-3
  • Rated Making Capacity AC-3 acc. to IEC 60947-4-1: 10 x Ie AC-3
  • Short-Circuit Protective Devices: gG Type Fuses 500 A
  • Rated Short-time Withstand Current (Icw): at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 2400 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 500 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 1100 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 3500 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 1500 A
  • Maximum Breaking Capacity: cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 2600 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 2400 A
  • Maximum Electrical Switching Frequency: AC-1 300 cycles per hourAC-2 / AC-4 150 cycles per hourAC-3 300 cycles per hour
  • Rated Operational Current DC-1 (Ie): (110 V) 2 Poles in Series, 40 °C 400 A(220 V) 3 Poles in Series, 40 °C 400 A
  • Rated Operational Current DC-3 (Ie): (110 V) 2 Poles in Series, 40 °C 400 A(220 V) 3 Poles in Series, 40 °C 400 A
  • Rated Operational Current DC-5 (Ie): (110 V) 2 Poles in Series, 40 °C 400 A(220 V) 3 Poles in Series, 40 °C 400 A
  • Rated Insulation Voltage (Ui): acc. to UL/CSA 600 Vacc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V
  • Rated Impulse Withstand Voltage (Uimp): Main Circuit 8 kV
  • Mechanical Durability: 5 million
  • Maximum Mechanical Switching Frequency: 3600 cycles per hour
  • Coil Operating Limits: (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
  • Rated Control Circuit Voltage (Uc): 50 Hz 110 V60 Hz 110 ... 120 V
  • Coil Consumption: Holding at Max. Rated Control Circuit Voltage 50 Hz 60 V·AHolding at Max. Rated Control Circuit Voltage 60 Hz 65 V·APull-in at Max. Rated Control Circuit Voltage 50 Hz 1350 V·APull-in at Max. Rated Control Circuit Voltage 60 Hz 1550 V·A
  • Operate Time: Between Coil De-energization and NC Contact Closing 7 ... 13 msBetween Coil De-energization and NO Contact Opening 10 ... 16 msBetween Coil Energization and NC Contact Opening 12 ... 30 msBetween Coil Energization and NO Contact Closing 17 ... 35 ms
  • Connecting Capacity Main Circuit: Bar 32 mmRigid Al-Cable 2 x 95 ... 120 m²Rigid Cu-Cable 16 ... 240 m²
  • Connecting Capacity Auxiliary Circuit: Flexible with Ferrule 2x 0.75 ... 2.5Flexible with Insulated Ferrule 1x 0.75 ... 2.5Flexible 2x0.75 ... 2.5 m²Solid 1 x 1 ... 4 m²Stranded 2 x 1 .... 4 m²
  • Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
  • Connecting Terminals (delivered in open position) Main Poles: Flat type c/w screws and bolts
  • Terminal Type: Main Circuit: Bars

Dimensions

  • Product Net Width: 140 mm
  • Product Net Depth / Length: 180.5 mm
  • Product Net Height: 227 mm
  • Product Net Weight: 5.4 kg

Ordering

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85364900
  • Replacement Product ID (NEW): 1SFL547002R1311

Overview

GTiN 00662019880082
Size 140x227x180.5mm
Operating Temperature -25 to +50 C
Type Contactors
Terminal Type Bars
Applications Primarily for controlling 3-phase motors and power circuits
Family Brand Name Thomas & Betts
