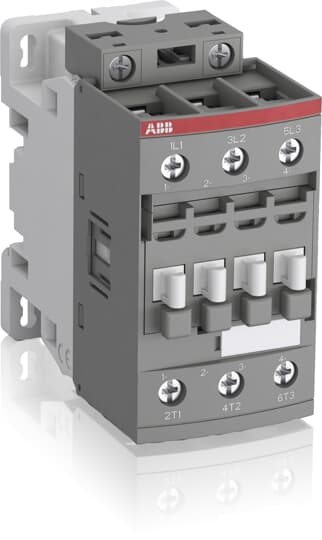

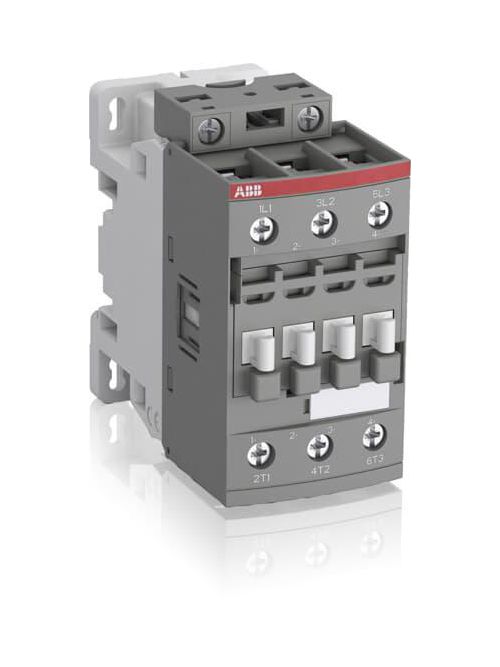

Thomas & Betts AF30-30-00-11 24 to 60 VAC 20 to 60 VDC 50 Amp 3-Pole Non-Reversing Contactor
$157.55/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABBEMPLV
Mfg Catalog # AF30-30-00-11
North Coast Part # 1013447

Specifications

Classifications

  • Object Classification Code: Q
  • ETIM 4: EC000066 - Magnet contactor, AC-switching
  • ETIM 5: EC000066 - Magnet contactor, AC-switching
  • ETIM 6: EC000066 - Power contactor, AC switching
  • ETIM 7: EC000066 - Power contactor, AC switching
  • E-Number (Sweden): 3211345

Container Information

  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 87 mm
  • Package Level 1 Depth / Length: 87 mm
  • Package Level 1 Height: 47 mm
  • Package Level 1 Gross Weight: 0.31 kg
  • Package Level 1 EAN: 3471523111219
  • Package Level 2 Units: box 21 piece
  • Package Level 2 Width: 250 mm
  • Package Level 2 Depth / Length: 300 mm
  • Package Level 2 Height: 315 mm
  • Package Level 2 Gross Weight: 13.95 kg
  • Package Level 3 Units: 1080 piece

Technical UL/CSA

  • General Use Rating UL/CSA: (600 V AC) 50 A
  • Horsepower Rating UL/CSA: (220 ... 240 V AC) Three Phase 10 hp(440 ... 480 V AC) Three Phase 20 hp(550 ... 600 V AC) Three Phase 25 hp(120 V AC) Single Phase 2 hp(200 ... 208 V AC) Three Phase 10 hp(240 V AC) Single Phase 5 hp
  • Tightening Torque UL/CSA: Control Circuit 11 IAMain Circuit 22 IA

Environmental

  • Ambient Air Temperature: Close to Contactor for Storage -60 ... +80 °CClose to Contactor without Thermal O/L Relay -40 ... +70 °CClose to Contactor Fitted with Thermal O/L Relay -25 ... +60 °C
  • Climatic Withstand: Category B according to IEC 60947-1 Annex Q
  • Maximum Operating Altitude Permissible: 3000 m
  • Resistance to Vibrations acc. to IEC 60068-2-6: 5 ... 300 Hz 4 g closed position / 2 g open position
  • Resistance to Shock acc. to IEC 60068-2-27: Shock Direction: A 30 K40Shock Direction: B2 15 K40Shock Direction: C1 25 K40Shock Direction: C2 25 K40Closed, Shock Direction: B1 25 K40Open, Shock Direction: B1 5 K40
  • RoHS Status: Following EU Directive 2011/65/EU

Technical

  • Number of Main Contacts NO: 3
  • Number of Main Contacts NC: 0
  • Number of Auxiliary Contacts NO: 0
  • Number of Auxiliary Contacts NC: 0
  • Standards: IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, CSA C22.2 N°14
  • Rated Operational Voltage: Main Circuit 690 V
  • Rated Frequency (f): Main Circuit 50 / 60 Hz
  • Conventional Free-air Thermal Current (Ith): acc. to IEC 60947-4-1, Open Contactors q = 40 °C 50 A
  • Rated Operational Current AC-1 (Ie): (690 V) 40 °C 50 A(690 V) 60 °C 42 A(690 V) 70 °C 37 A
  • Rated Operational Current AC-3 (Ie): (220 / 230 / 240 V) 60 °C 33 A(380 / 400 V) 60 °C 32 A(415 V) 60 °C 32 A(440 V) 60 °C 32 A(500 V) 60 °C 28 A(690 V) 60 °C 21 A
  • Rated Operational Power AC-3 (Pe): (220 / 230 / 240 V) 9 KWT(380 / 400 V) 15 KWT(415 V) 15 KWT(440 V) 18.5 KWT(500 V) 18.5 KWT(690 V) 18.5 KWT(400 V) 15 KWT
  • Rated Short-time Withstand Current (Icw): at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 350 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 50 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 150 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 700 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 225 Afor 1 s -empty- A
  • Maximum Breaking Capacity: cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 500 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 200 A
  • Maximum Electrical Switching Frequency: AC-1 600 cycles per hourAC-2 / AC-4 150 cycles per hourAC-3 1200 cycles per hour
  • Rated Insulation Voltage (Ui): acc. to UL/CSA 600 Vacc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V
  • Rated Impulse Withstand Voltage (Uimp): 6 kV
  • Maximum Mechanical Switching Frequency: 3600 cycles per hour
  • Rated Control Circuit Voltage (Uc): 50 Hz 24 ... 60 V50 Hz / 60 Hz 24 ... 60 V60 Hz 24 ... 60 VDC Operation 20 ... 60 V
  • Operate Time: Between Coil De-energization and NC Contact Closing 13 ... 98 msBetween Coil De-energization and NO Contact Opening 11 ... 95 msBetween Coil Energization and NC Contact Opening 38 ... 90 msBetween Coil Energization and NO Contact Closing 40 ... 95 ms
  • Connecting Capacity Main Circuit: Rigid 1/2x 2.5 ... 10 m²Flexible with Ferrule 1/2x 1.5 ... 10 m²Flexible with Insulated Ferrule 1x 1.5 ... 10 m²Flexible with Insulated Ferrule 2x 1.5 ... 4 m²
  • Connecting Capacity Control Circuit: Flexible with Ferrule 1/2x 0.75 ... 2.5 m²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 m²Flexible with Insulated Ferrule 2x 0.75 ... 1.5 m²Rigid 1/2x 1 ... 2.5 m²
  • Wire Stripping Length: Control Circuit 10 mmMain Circuit 14 mm
  • Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
  • Terminal Type: Screw Terminals

Dimensions

  • Product Net Width: 45 mm
  • Product Net Depth / Length: 86 mm
  • Product Net Height: 86 mm
  • Product Net Weight: 0.31 kg

Ordering

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85364900

Overview

GTiN 804326000000
Size 45x86x86mm
Type Contactors
Applications Mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads
Family Brand Name Thomas & Betts
Terminal Type Screw Terminals
Standard 60947-4-1,CSA C22.2 N14,EN 60947-1,IEC 60947-1,UL 508
