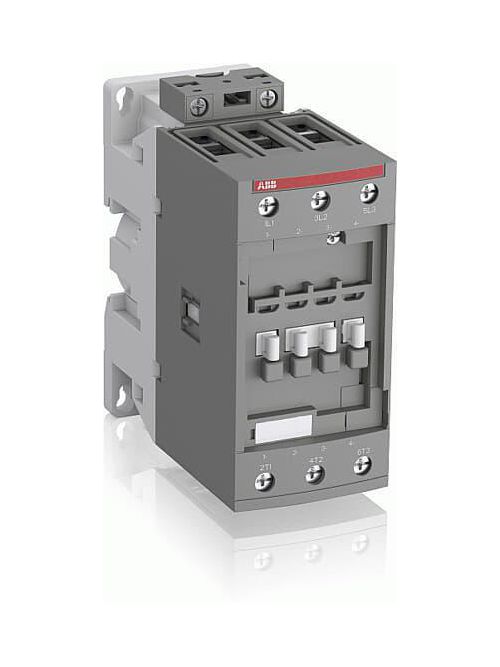

ABB AF65-30-00-11 CONTACTOR, 3 POLE
Product image thumbnail 0
Product image thumbnail 1
$274.13/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABBEMPLV
Mfg Catalog # AF65-30-00-11
North Coast Part # 1826784

Specifications

Classifications

  • Object Classification Code: Q
  • ETIM 4: EC000066 - Magnet contactor, AC-switching
  • ETIM 5: EC000066 - Magnet contactor, AC-switching
  • ETIM 6: EC000066 - Power contactor, AC switching
  • ETIM 7: EC000066 - Power contactor, AC switching
  • UNSPSC: 39121529
  • E-Number (Sweden): 3210042

Container Information

  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 150 mm
  • Package Level 1 Depth / Length: 150 mm
  • Package Level 1 Height: 97 mm
  • Package Level 1 Gross Weight: 1.07 kg
  • Package Level 1 EAN: 3471523132610
  • Package Level 2 Units: box 10 piece
  • Package Level 2 Width: 250 mm
  • Package Level 2 Depth / Length: 300 mm
  • Package Level 2 Height: 300 mm
  • Package Level 2 Gross Weight: 10.7 kg
  • Package Level 3 Units: 240 piece

Technical UL/CSA

  • Horsepower Rating UL/CSA: (220 ... 240 V AC) Three Phase 25 hp(440 ... 480 V AC) Three Phase 50 hp(550 ... 600 V AC) Three Phase 60 hp(120 V AC) Single Phase 5 hp(200 ... 208 V AC) Three Phase 20 hp(240 V AC) Single Phase 15 hp
  • Tightening Torque UL/CSA: Control Circuit 11 IAMain Circuit 35 IA

Environmental

  • Ambient Air Temperature: Close to Contactor for Storage -60 ... +80 °CClose to Contactor without Thermal O/L Relay -40 ... +70 °CClose to Contactor Fitted with Thermal O/L Relay -25 ... +60 °C
  • Climatic Withstand: Category B according to IEC 60947-1 Annex Q
  • Maximum Operating Altitude Permissible: 3000 m
  • Resistance to Vibrations acc. to IEC 60068-2-6: 5 ... 300 Hz 3 g closed position / 3 g open position
  • Resistance to Shock acc. to IEC 60068-2-27: Closed, Shock Direction: A 25 K40Closed, Shock Direction: B1 25 K40Closed, Shock Direction: B2 15 K40Closed, Shock Direction: C1 25 K40Closed, Shock Direction: C2 25 K40Open, Shock Direction: B1 5 K40
  • RoHS Status: Following EU Directive 2011/65/EU

Technical

  • Number of Main Contacts NO: 3
  • Number of Main Contacts NC: 0
  • Number of Auxiliary Contacts NO: 0
  • Number of Auxiliary Contacts NC: 0
  • Rated Operational Voltage: Main Circuit 690 V
  • Rated Frequency (f): Main Circuit 50 / 60 Hz
  • Conventional Free-air Thermal Current (Ith): acc. to IEC 60947-4-1, Open Contactors q = 40 °C 105 A
  • Rated Operational Current AC-1 (Ie): (690 V) 40 °C 105 A(690 V) 60 °C 90 A(690 V) 70 °C 80 A
  • Rated Operational Current AC-3 (Ie): (220 / 230 / 240 V) 60 °C 65 A(380 / 400 V) 60 °C 65 A(415 V) 60 °C 65 A(440 V) 60 °C 65 A(500 V) 60 °C 55 A(690 V) 60 °C 39 A
  • Rated Operational Power AC-3 (Pe): (220 / 230 / 240 V) 18.5 KWT(380 / 400 V) 30 KWT(415 V) 37 KWT(440 V) 37 KWT(500 V) 37 KWT(690 V) 37 KWT(400 V) 30 KWT
  • Rated Short-time Withstand Current (Icw): at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 600 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 110 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 250 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1000 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 350 Afor 1 s -empty- A
  • Maximum Breaking Capacity: cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 950 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 600 A
  • Maximum Electrical Switching Frequency: AC-1 600 cycles per hourAC-2 / AC-4 150 cycles per hourAC-3 1200 cycles per hour
  • Rated Insulation Voltage (Ui): acc. to UL/CSA 600 Vacc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V
  • Rated Impulse Withstand Voltage (Uimp): 6 kV
  • Maximum Mechanical Switching Frequency: 3600 cycles per hour
  • Rated Control Circuit Voltage (Uc): 50 Hz 24 ... 60 V50 Hz / 60 Hz 24 ... 60 V60 Hz 24 ... 60 VDC Operation 20 ... 60 V
  • Operate Time: Between Coil De-energization and NC Contact Closing 19 ... 105 msBetween Coil De-energization and NO Contact Opening 17 ... 100 msBetween Coil Energization and NC Contact Opening 38 ... 95 msBetween Coil Energization and NO Contact Closing 42 ... 100 ms
  • Connecting Capacity Main Circuit: Rigid 1/2x 6 ... 3 5 m²Flexible with Ferrule 1/2x 4 ... 35 m²Flexible with Insulated Ferrule 1/2x 4 ... 35 m²
  • Connecting Capacity Control Circuit: Flexible with Ferrule 1/2x 0.75 ... 2.5 m²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 m²Flexible with Insulated Ferrule 2x 0.75 ... 1.5 m²Rigid 1/2x 1 ... 2.5 m²
  • Wire Stripping Length: Main Circuit 16 mm
  • Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
  • Terminal Type: Screw Terminals

Dimensions

  • Product Net Width: 55 mm
  • Product Net Depth / Length: 111 mm
  • Product Net Height: 125.5 mm
  • Product Net Weight: 0.97 kg

Ordering

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85364900

Overview

GTiN 888614000000
Size 55x125.5x111mm
Operating Temperature 80 C
Type Contactors
Applications Mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads
Family Brand Name Thomas & Betts
Terminal Type Screw Terminals
