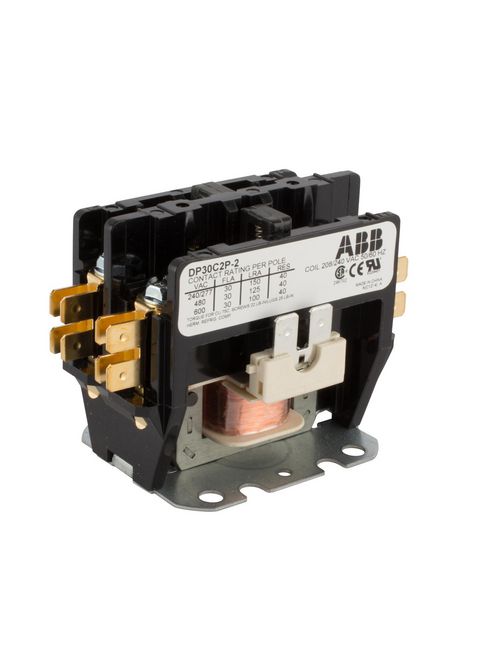

ABB DP30C2P-2 2-Pole 30 Amp 240/208 VAC De?nite Purpose Contactor
Product image thumbnail 0
Product image thumbnail 1
$48.42/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABBEMPLV
Mfg Catalog # DP30C2P-2
North Coast Part # 939114

Specifications

Ordering

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85365080

Dimensions

  • Product Net Width: 52.7 mm
  • Product Net Depth / Length: 60.1 mm
  • Product Net Height: 82.9 mm
  • Product Net Weight: 0.27 kg

Technical

  • Number of Main Contacts NO: 2
  • Standards: IEC 60947-4-1UL 508
  • Rated Frequency (f): Control Circuit 50 HzControl Circuit 60 Hz
  • Rated Control Supply Voltage (Us): 208 / 240 V AC

Environmental

  • Ambient Air Temperature: Operation -40 ... +65 °C
  • RoHS Status: No declaration needed

Technical UL/CSA

  • Horsepower Rating UL/CSA: (110 ... 120 V AC) Single Phase 2 Hp(220 ... 240 V AC) Single Phase 3 Hp
  • Full Load Amps AC Resistance (Heating): (600 V AC) 40 A
  • Full Load Amps Motor Use: 30 A
  • Locked Rotor Amps: (480 V AC) 125 A(600 V AC) 100 A

Container Information

  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 50.8 mm
  • Package Level 1 Depth / Length: 63.5 mm
  • Package Level 1 Height: 88.9 mm

Classifications

  • Object Classification Code: Q
  • ETIM 7: EC000066 - Power contactor, AC switching
  • UNSPSC: 39121529

Overview

UPC 66201975552
GTiN 00662019755526
Size 3.30x2x2.44
Type Non-Reversing
Applications For HVAC and Refrigeration Equipment Operation and Control, Control of Business Machines, Food Service Equipment and Vending
Standard IEC 60947-4-1UL 508
Family Brand Name Thomas & Betts
Conductor Size 16-8 AWG
Coil Voltage 208 - 240 VAC
Temperature Rating 130 C
Contact Configuration 2 NO
Blade Dimensions 2 in W x 3.3 in H x 2.44 in D
Number of Poles 2
