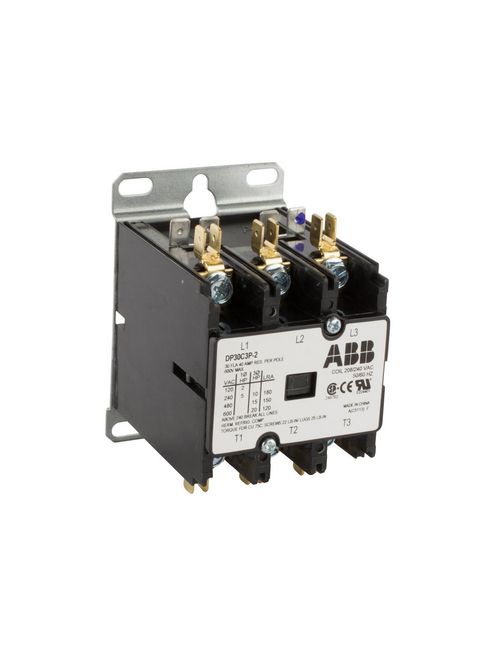

ABB DP30C3P-2 DP CONTR 3P 240 SCREW
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$70.10/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABBEMPLV
Mfg Catalog # DP30C3P-2
North Coast Part # 939113

Specifications

Ordering

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85365080

Dimensions

  • Product Net Width: 60.3 mm
  • Product Net Depth / Length: 73.8 mm
  • Product Net Height: 92 mm
  • Product Net Weight: 0.45 kg

Technical

  • Number of Main Contacts NO: 3
  • Standards: IEC 60947-4-1UL 508
  • Rated Frequency (f): Control Circuit 50 HzControl Circuit 60 Hz
  • Rated Control Supply Voltage (Us): 208 / 240 V AC

Environmental

  • Ambient Air Temperature: Operation -40 ... +65 °C
  • RoHS Status: No declaration needed

Technical UL/CSA

  • Horsepower Rating UL/CSA: (110 ... 120 V AC) Single Phase 2 Hp(208 V AC) Three Phase 10 Hp(220 ... 240 V AC) Single Phase 5 Hp(220 ... 240 V AC) Three Phase 10 Hp(440 ... 480 V AC) Three Phase 15 Hp(550 ... 600 V AC) Three Phase 20 Hp
  • Full Load Amps AC Resistance (Heating): (600 V AC) 40 A
  • Full Load Amps Motor Use: 30 A
  • Locked Rotor Amps: (480 V AC) 150 A(600 V AC) 120 A

Container Information

  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 63.5 mm
  • Package Level 1 Depth / Length: 76.2 mm
  • Package Level 1 Height: 101.6 mm

Classifications

  • Object Classification Code: Q
  • ETIM 7: EC000066 - Power contactor, AC switching
  • UNSPSC: 39121529

Overview

UPC 66201975560
GTiN 00662019755601
Size 3.39x2.41x2.98
Type Contactors
Conductor Size 16-8 AWG
Applications Designed for HVAC and refrigeration equipment operation and control
Standard IEC 60947-4-1UL 508
Coil Voltage 208 - 240 VAC
Temperature Rating 130 C
Family Brand Name Thomas & Betts
Power Rating 65/60 VA Inrush, 7.5/6 VA Closed Coil
Contact Configuration 3 NO
Blade Dimensions 2.41 in W x 2.98 in D x 3.39 in H
Contact Rating 600 VAC
Number of Poles 3 Pole
