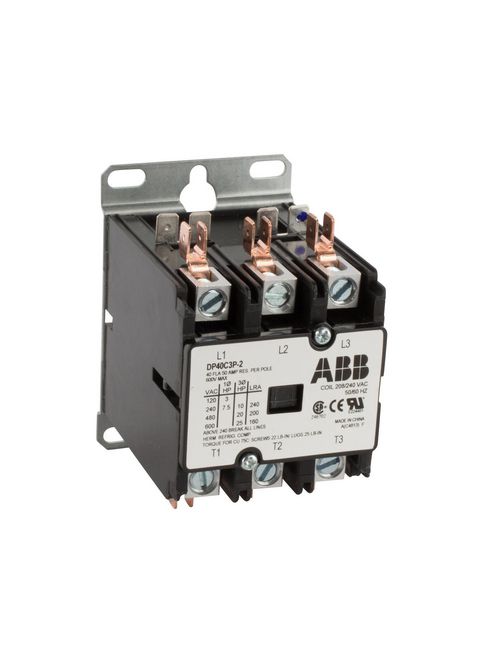

ABB DP40C3P-2 3-Pole 40 Amp 240/208 VAC De?nite Purpose Contactor

Specifications

Ordering

• Minimum Order Quantity: 1 piece
• Customs Tariff Number: 85365080

Dimensions

• Product Net Width: 60.3 mm
• Product Net Depth / Length: 73.8 mm
• Product Net Height: 92 mm
• Product Net Weight: 0.45 kg

Technical

• Number of Main Contacts NO: 3
• Standards: IEC 60947-4-1UL 508
• Rated Frequency (f): Control Circuit 50 HzControl Circuit 60 Hz
• Rated Control Supply Voltage (Us): 208 / 240 V AC

Environmental

• Ambient Air Temperature: Operation -40 ... +65 °C
• RoHS Status: No declaration needed

Technical UL/CSA

• Horsepower Rating UL/CSA: (110 ... 120 V AC) Single Phase 3 Hp(208 V AC) Three Phase 10 Hp(220 ... 240 V AC) Single Phase 7.5 Hp(220 ... 240 V AC) Three Phase 10 Hp(440 ... 480 V AC) Three Phase 20 Hp(550 ... 600 V AC) Three Phase 25 Hp
• Full Load Amps AC Resistance (Heating): (600 V AC) 50 A
• Full Load Amps Motor Use: 40 A
• Locked Rotor Amps: (480 V AC) 200 A(600 V AC) 160 A

Container Information

• Package Level 1 Units: 1 piece
• Package Level 1 Width: 63.5 mm
• Package Level 1 Depth / Length: 76.2 mm
• Package Level 1 Height: 101.6 mm

Classifications

• Object Classification Code: Q
• ETIM 7: EC000066 - Power contactor, AC switching
• UNSPSC: 39121529
