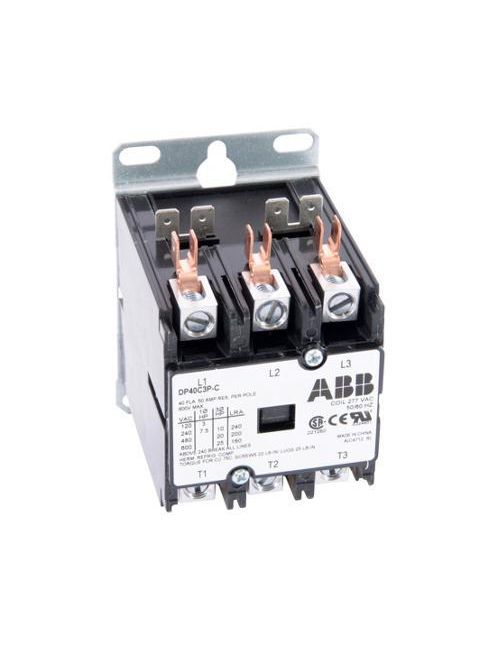

ABB DP40C3P-C 3-Pole 40 Amp 277 VAC Definite Purpose Contactor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$80.27/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABBEMPLV
Mfg Catalog # DP40C3P-C
North Coast Part # 1343216

Specifications

Ordering

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85365080

Dimensions

  • Product Net Width: 60.3 mm
  • Product Net Depth / Length: 73.8 mm
  • Product Net Height: 92 mm
  • Product Net Weight: 0.45 kg

Technical

  • Number of Main Contacts NO: 3
  • Standards: IEC 60947-4-1UL 508
  • Rated Frequency (f): Control Circuit 50 HzControl Circuit 60 Hz
  • Rated Control Supply Voltage (Us): 277 V AC

Environmental

  • Ambient Air Temperature: Operation -40 ... +65 °C
  • RoHS Status: No declaration needed

Technical UL/CSA

  • Horsepower Rating UL/CSA: (110 ... 120 V AC) Single Phase 3 Hp(208 V AC) Three Phase 10 Hp(220 ... 240 V AC) Single Phase 7.5 Hp(220 ... 240 V AC) Three Phase 10 Hp(440 ... 480 V AC) Three Phase 20 Hp(550 ... 600 V AC) Three Phase 25 Hp
  • Full Load Amps AC Resistance (Heating): (600 V AC) 50 A
  • Full Load Amps Motor Use: 40 A
  • Locked Rotor Amps: (480 V AC) 200 A(600 V AC) 160 A

Container Information

  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 63.5 mm
  • Package Level 1 Depth / Length: 76.2 mm
  • Package Level 1 Height: 101.6 mm

Classifications

  • Object Classification Code: Q
  • ETIM 7: EC000066 - Power contactor, AC switching
  • UNSPSC: 39121529

Overview

UPC 66201975565
GTiN 00662019755656
Size 3.39x2.41x2.98 Inches
Applications Designed for HVAC and refrigeration equipment operation and control
Coil Voltage 277 V
Family Brand Name Thomas & Betts
Standard IEC 60947-4-1UL 508
