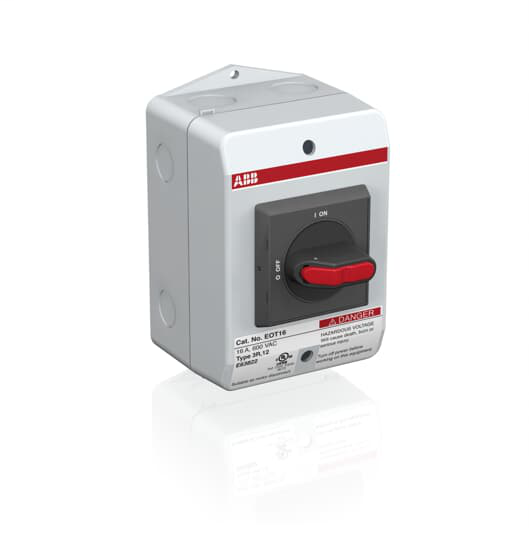

ABB EOT16U3P3-1S 3P SW 20A NF N3R/1
$377.79/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABBEMPLV
Mfg Catalog # EOT16U3P3-1S
North Coast Part # 999209

Specifications

Dimensions

  • Product Net Width: 100 mm3.94 in
  • Product Net Height: 161.4 mm6.35 in
  • Product Net Depth / Length: 81 mm3.19 in
  • Product Net Weight: 0.59 kg1.3 lb

Technical

  • Rated Operational Current AC-22A (Ie): (380 ... 415 V) 16 A(690 V) 16 A
  • Rated Operational Current AC-23A (Ie): (690 V) 16 A(690 V) 380415V10 A
  • Conventional Thermal Current (Ithe): 16 A
  • Rated Insulation Voltage (Ui): acc. to IEC/EN 60664-1 750 V
  • Rated Operational Voltage: Main Circuit 750 V
  • Rated Short-Circuit Making Capacity (Icm): (690 V AC) 0.71 kA
  • Rated Short-time Withstand Current (Icw): for 1 s 0.5 kA
  • Pollution Degree: 3
  • Handle Color: Black
  • Handle Type: Selector handle
  • Position of Line Terminals: Top In - Bottom Out
  • Standards: IEC 60947-1, -3 / UL 508
  • Number of Poles: 3
  • Connecting Capacity Main Circuit: Screw Clamp 0.75...10 mm²Screw Clamp / PE Terminal 1pcs, 0.5…16 mm²
  • Cable Entry Position: Up/Down
  • Cable Outlets Per Side: 2x(ø0.5 / 12.7+ø0.75 / 19.1)
  • Degree of Protection: acc. to IEC 60529 IP65
  • Enclosure Type: NEMA Type 3R Rainproof
  • Enclosure Material: Plastic
  • Mounted Auxiliary Contacts: 1 NO, 0 NC
  • Terminal Type: Screw Terminals
  • Tightening Torque: acc. IEC 60947-1 0.8 N·m
  • Mechanical Durability: 20000

Technical UL/CSA

  • Maximum Operating Voltage UL/CSA: 600 V
  • Horsepower Rating UL/CSA: (220 ... 240 V AC) Three Phase 5 Hp(480 V AC) 10 Hp(600 V AC) 10 Hp
  • Ampere Rating UL/CSA: 16 A
  • Tightening Torque UL/CSA: Main Circuit 7 in·lb

Container Information

  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 135 mm
  • Package Level 1 Depth / Length: 172 mm
  • Package Level 1 Height: 112 mm
  • Package Level 1 Gross Weight: 0.59 kg1.3 lb
  • Package Level 1 EAN: 6417019271958

Classifications

  • Object Classification Code: Q
  • ETIM 5: EC000216 - Switch disconnector
  • ETIM 6: EC000216 - Switch disconnector
  • ETIM 7: EC000216 - Switch disconnector
  • UNSPSC: 39122233
  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)

Overview

GTiN 00662019444888
Type Enclosed Disconnect Switch Non Fused (16-100A)
Terminal Type Screw Terminals
Applications Industrial control panel disconnects
Standard IEC 60947-1, -3,UL 508
Family Brand Name Thomas & Betts
Number of Poles 3 Pole
Enclosure Plastic
Voltage 600 Volt
Amperage 16 Amp
Enclosure Material Plastic
