ABB IB132-G ENCLOSURE, IP65, 3X LOC
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$59.08/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABBEMPLV
Mfg Catalog # IB132-G
North Coast Part # 934349

Specifications

Ordering

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099

Dimensions

  • Product Net Width: 120 mm
  • Product Net Height: 120 mm
  • Product Net Depth / Length: 195 mm
  • Product Net Weight: 0.37 kg

Technical

  • Contact Position Indication: ON / OFF / TRIP
  • Actuator Type: Rotary Handle
  • Color: Grey / Black
  • Degree of Protection: IP65
  • Standards: CSA 22.2 No. 14IEC/EN 60947-1IEC/EN 60947-4-1UL 508
  • Product Name: Enclosure
  • Suitable For: MS116MS132
  • Suitable for Product Class: Manual Motor Starter
  • Accessory Group: Mechanical
  • Accessory Type: Enclosure
  • Remarks: For detailed specification see installation instruction

Technical UL/CSA

  • Enclosure Type UL/CSA: 12

Environmental

  • Ambient Air Temperature: Operation 0 ... +40 ┬░CStorage -50 ... +80 ┬░C
  • RoHS Status: Following EU Directive 2011/65/EU

Container Information

  • Package Level 1 Width: 129 mm
  • Package Level 1 Depth / Length: 129 mm
  • Package Level 1 Height: 141 mm
  • Package Level 1 Gross Weight: 0.435 kg
  • Package Level 1 EAN: 4013614421617
  • Package Level 1 Units: box 1 piece

Classifications

  • ETIM 4: EC002498 - Accessories for low-voltage switch technology
  • ETIM 5: EC000712 - Empty enclosure for switchgear
  • ETIM 6: EC000712 - Empty enclosure for switchgear
  • ETIM 7: EC000712 - Empty enclosure for switchgear
  • eClass: 7.0 27371301
  • UNSPSC: 39121334
  • IDEA Granular Category Code (IGCC): 4492 >> Modular electrical enclosure
  • E-Number (Sweden): 3112073

Overview

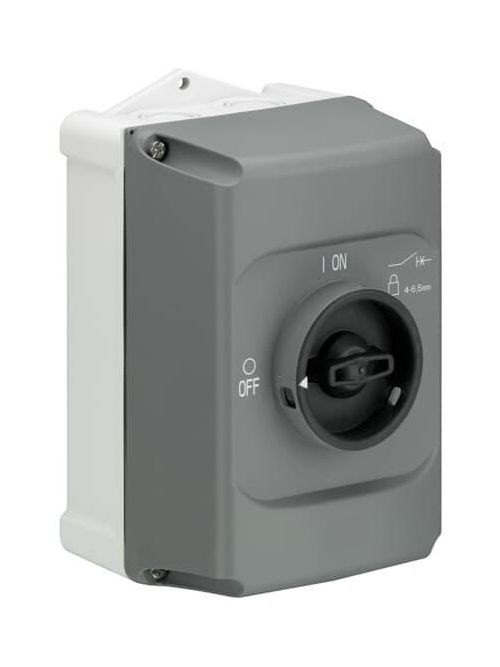

Item Long Description Gray molded plastic enclosure with On/Trip /Off marking and protection according to NEMA 12 and IP 65 for use on type MS116 and 132 manual motor controllers
GTiN 804326000000
Size 120x120x195mm
Color Gray/Black
Type Motor starter controls
Applications Suitable for MS116, MS132
Standard CSA 22.2 No. 14IEC,EN 60947-1IEC,EN 60947-4-1UL 508
Family Brand Name Thomas & Betts
Width 120 mm
Material Plastic
Depth 195 mm
Height 120 mm
Used With MS116, 132 Manual Motor Controller
