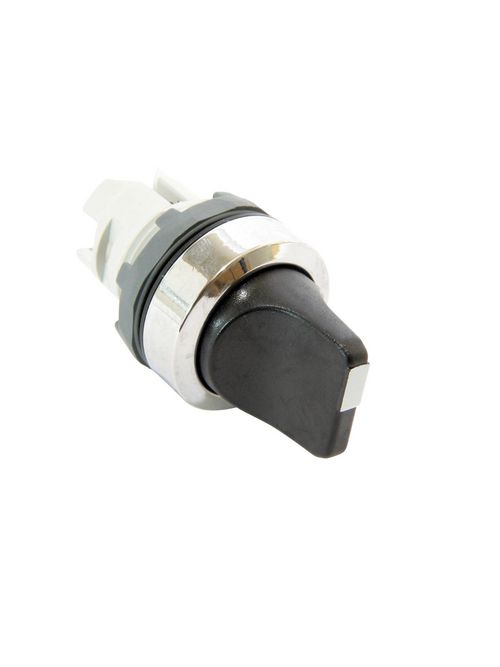

ABB M3SS1-30B 3POS,KNOB,A-B-C,BLK,M
$13.67/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABBEMPLV
Mfg Catalog # M3SS1-30B
North Coast Part # 1279001

Specifications

Ordering

  • E-Number (Sweden): 3716730
  • EAN: 7320500293546
  • Minimum Order Quantity: 10 piece
  • Customs Tariff Number: 8536501999

Dimensions

  • Product Net Width: 0.048 m
  • Product Net Height: 0.03 m
  • Product Net Depth / Length: 0.05 m
  • Product Net Weight: 0.015 kg

Container Information

  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 0.11 m
  • Package Level 1 Height: 0.03 m
  • Package Level 1 Depth / Length: 0.15 m
  • Package Level 1 Gross Weight: 0.015 kg
  • Package Level 1 EAN: 7320500293546

Environmental

  • RoHS Status: Following EU Directive 2011/65/EU

Additional Information

  • Actuator Type: Short handle
  • Bezel Material: Chrome Metal
  • Block: No contact block
  • Color: Black
  • Degree of Protection: Front IP66Terminals IP20
  • Function: Maintained
  • Illumination: Non-illuminated
  • Maintained Positions: A, B, C
  • Mechanical Durability: 0.5 million
  • Mounting Position: Horizontally mounted
  • Product Main Type: M3SS1
  • Product Name: Selector Switch
  • Product Range: Modular
  • Product Type: M3SS
  • RoHS Date: 0635 4
  • Sub-Function: 3-position

Classifications

  • ETIM 4: EC002024 - Accessories for control circuit devices
  • ETIM 5: EC000222 - Front element for selector switch
  • ETIM 6: EC000222 - Front element for selector switch
  • ETIM 7: EC000222 - Front element for selector switch
  • Object Classification Code: S
  • UNSPSC: 39121500
  • WEEE Category: Product Not in WEEE Scope

Overview

GTiN 00662019234182
Size 0.048x0.03x0.05mm
Type Modular, Short Handle
Applications For use with control panels
Family Brand Name Thomas & Betts
Color Black
Mounting Type Horizontal
Temperature Rating -25 to 70 C Operation, -30 to 85 C Storage
Blade Dimensions 0.05 m L x 0.048 m W x 0.03 m H
Bezel Material Chrome Metal
Number of Positions 3
Action Maintained
