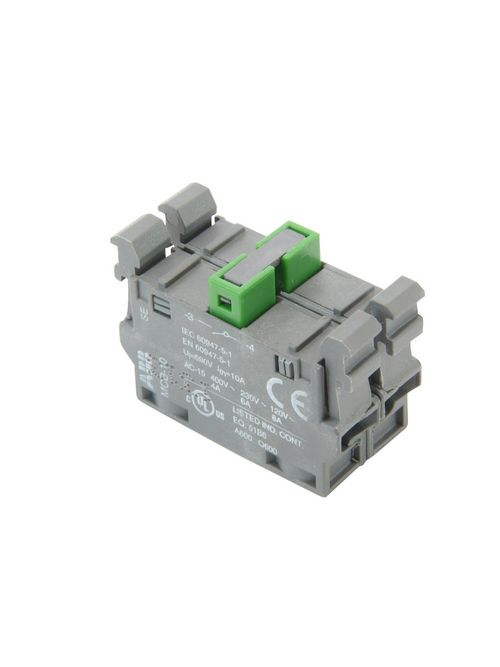

ABB MCB-20 CONTACT BLOCK DBL 2NO
$19.86/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABBEMPLV
Mfg Catalog # MCB-20
North Coast Part # 1004282

Specifications

Ordering

  • E-Number (Norway): 4372990
  • E-Number (Sweden): 3714015
  • EAN: 7320500307755
  • Minimum Order Quantity: 10 piece
  • Customs Tariff Number: 8536901000

Dimensions

  • Product Net Width: 0.02 m
  • Product Net Height: 0.044 m
  • Product Net Depth / Length: 0.028 m
  • Product Net Weight: 0.04 kg

Container Information

  • Package Level 1 Units: 10 piece
  • Package Level 1 Width: 0.11 m
  • Package Level 1 Height: 0.02 m
  • Package Level 1 Depth / Length: 0.15 m
  • Package Level 1 Gross Weight: 0.04 kg

Environmental

  • RoHS Status: Following EU Directive 2011/65/EU

Additional Information

  • Accessory Type: Contact blocks and holders
  • Block: Double contact block
  • Connection Type: Screw Clamp
  • Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
  • Function: Without holder
  • Illumination: Non-illuminated
  • Mechanical Durability: 10 million
  • Mounting Type: Front mounting
  • Number of Auxiliary Contacts NO: 2
  • Product Main Type: MCB
  • Product Name: Contact Block
  • Product Range: Modular range
  • Product Type: MCB
  • Rated Frequency (f): Supply Circuit 50 60 Hz
  • Rated Operational Current AC-15 (Ie): (230 V AC) 6 A
  • Rated Operational Current DC-13 (Ie): (125 V) 1.1 A(24 V) 5
  • RoHS Date: 0635 4
  • Suitable For: MP1MP2MP3MP4MPD1MPD2MPD3MPD4MPD5MPD11MPD12MPD13MPD14MPD15MPD16MPM1MPM2KP6MPET3MPEP3MPEK3MPET4MPEP4MPEK4MPMT3MPMT4MPMP3MPMP4M2SS1M2SS2M2SS3M2SS4M2SS5M2SS6M3SS1M3SS2M3SS3M3SS4M3SS5M3SS6M3SS7M3SS8M3SSC1M3SSC2M3SSC3M3SSC4M3SSC5M3SSC6M3SSC7M3SSC8M2SSK1M2SSK2M2SSK3M3SSK1M3SSK2M3SSK3MTS1MTS2MTS3MJS1MJS2MJS5MJS6MJS7MJS8MJS11MJS12

Classifications

  • ETIM 4: EC002024 - Accessories for control circuit devices
  • ETIM 5: EC000041 - Auxiliary contact block
  • ETIM 6: EC000041 - Auxiliary contact block
  • ETIM 7: EC000041 - Auxiliary contact block
  • Object Classification Code: S
  • UNSPSC: 39121500
  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)

Overview

GTiN 00662019229447
Size 0.044x0.02x0.028mm
Type Electrical control modules
Applications 22 or 30 mm Modular Pilot Devices.
Family Brand Name Thomas & Betts
Terminal Type Screw Clamp
Mounting Type Front
Contact Configuration 2 NO
Blade Dimensions 0.02 m W x 0.028 m D x 0.044 m H
Number of Poles 2
Enclosure IP20
Used With MP1-MP4, MPD1-MPD16, MPM1-MPM2, KP6, MPET3, MPEP3, MPEP3, MPET4, MPEP4, MPEK4, MPMT3, MPMT4, MPMP3, MPMP4, M2SS1-M2SS6, M3SS1-M3SS8, M3SSC1-M3SSC8, M2SSK1-M2SSK3, M3SSK1-M3SSK3, MTS1-MTS3, MJS1-MJS12 Modular Joystick
