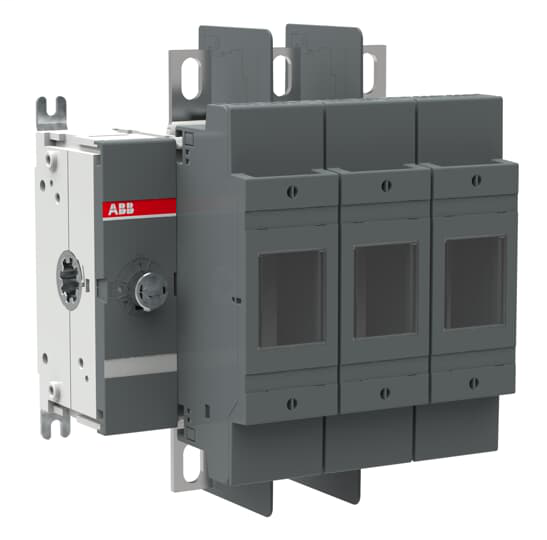

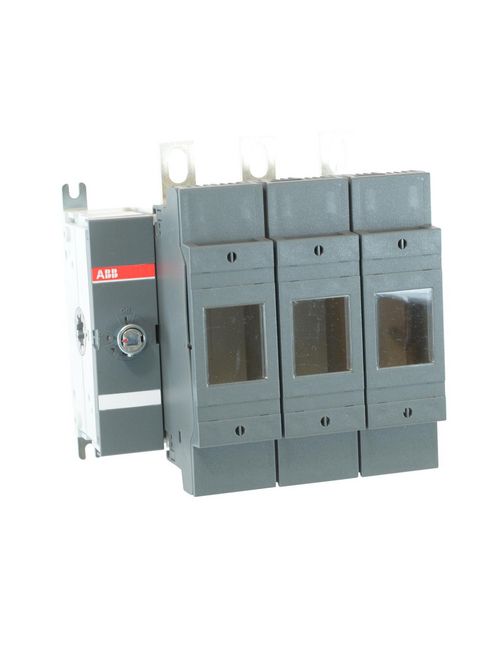

ABB OS200J03 200 Amp 600 Volt 3-Pole Din Rail Mount Front Operated Fusible Disconnect Switch
$1,587.21/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABBEMPLV
Mfg Catalog # OS200J03
North Coast Part # 931557

Specifications

Dimensions

  • Product Net Width: 182 mm
  • Product Net Height: 218 mm
  • Product Net Depth / Length: 132 mm
  • Product Net Weight: 2.8 kg6.2 lb

Technical

  • Rated Operational Current AC-21A (Ie): (500 V) 200 A(690 V) 200 A
  • Rated Operational Current AC-22A (Ie): (380 ... 415 V) 200 A(500 V) 200 A(690 V) 200 A
  • Rated Operational Current AC-23A (Ie): (380 ... 415 V) 200 A(500 V) 200 A(690 V) 200 A
  • Rated Operational Power AC-23A (Pe): (220 ... 240 V) 60 kW(400 V) 110 kW(415 V) 110 kW(500 V) 132 kW(690 V) 200 kW
  • Conventional Free-air Thermal Current (Ith): q = 40 °C 200 A
  • Conventional Thermal Current (Ithe): Fully Enclosed 200 A
  • Rated Impulse Withstand Voltage (Uimp): 12 kV
  • Rated Insulation Voltage (Ui): 1000 V
  • Rated Operational Voltage: 500 V
  • Rated Short-time Withstand Current (Icw): for 1 s 8 kiloampere rms
  • Rated Conditional Short-Circuit Current (Inc): (690 V) 80 kA
  • Power Loss: at Rated Operating Conditions per Pole 17 W
  • Pollution Degree: 3
  • Handle Type: Handle and shaft not included
  • Switches Operating Mechanism: 03 (Left Side)
  • Position of Line Terminals: Top In - Bottom OutBottom In - Top Out
  • Fuse Size: 200 A
  • Fuse System: Class J
  • Operating Mode: Front Operated
  • Standards: UL98IEC 60947-3
  • Mounting Type: Base mounting
  • Number of Poles: 3
  • Terminal Type: Lug terminals
  • Terminal Width: 20 mm
  • Tightening Torque: 15 ... 22 N·m

Technical UL/CSA

  • Horsepower Rating UL/CSA: (acc. to UL 240 V) 60 Hp(acc. to UL 480 V) 125 Hp(acc. to UL 600 V) 150 Hp
  • Ampere Rating UL/CSA: 200 A
  • Tightening Torque UL/CSA: Wire-Clamp 275 in·lbCable Lug 72 in·lb

Container Information

  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 230 mm9.1 in
  • Package Level 1 Depth / Length: 270 mm10.6 in
  • Package Level 1 Height: 170 mm6.7 in
  • Package Level 1 Gross Weight: 3.1 kg6.9 lb
  • Package Level 1 EAN: 6417019237435

Classifications

  • Object Classification Code: Q
  • ETIM 4: EC001040 - Fuse switch disconnector
  • ETIM 5: EC001040 - Fuse switch disconnector
  • ETIM 6: EC001040 - Fuse switch disconnector
  • ETIM 7: EC001040 - Fuse switch disconnector
  • UNSPSC: 39122233
  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)

Overview

GTiN 00662019161679
Size 182x218x132mm
Type Disconnect switch
Applications For J Type Fuse
Family Brand Name Thomas & Betts
Blade Dimensions 182 x 218 x 132 mm
Number of Poles 3
Terminal Type Lug Terminals
Mounting Type Base Mounting
Standard UL98IEC 60947-3
