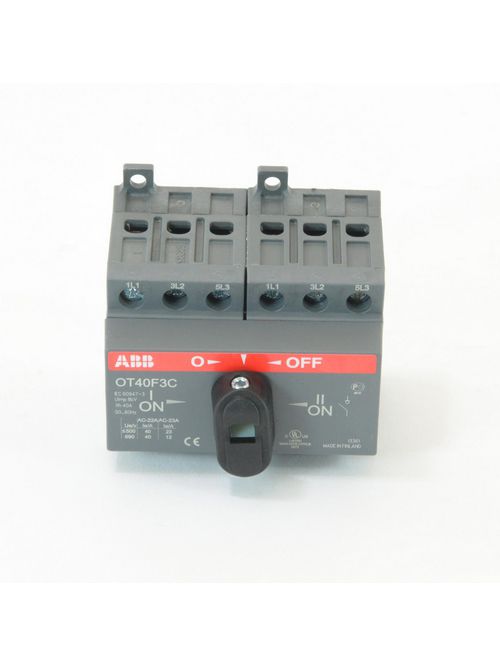

ABB OT40F3C 3P 40A UL508 MANUAL XFE
Product image thumbnail 0
Product image thumbnail 1
$520.20/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABBEMPLV
Mfg Catalog # OT40F3C
North Coast Part # 1273556

Specifications

Dimensions

  • Product Net Width: 70 mm
  • Product Net Height: 68 mm
  • Product Net Depth / Length: 68 mm
  • Product Net Weight: 0.25 kg

Technical

  • Rated Operational Current AC-21A (Ie): (380 ... 415 V) 40 A(500 V) 40 A(690 V) 40 A
  • Rated Operational Current AC-22A (Ie): (380 ... 415 V) 40 A(500 V) 40 A(690 V) 40 A
  • Rated Operational Current AC-23A (Ie): (380 ... 415 V) 23 A(500 V) 23 A(690 V) 12 A
  • Rated Operational Power AC-23A (Pe): (380 ... 415 V) 11 kW(500 V) 11 kW(690 V) 11 kW
  • Conventional Free-air Thermal Current (Ith): q = 40 °C 40 A
  • Conventional Thermal Current (Ithe): Fully Enclosed 40 A
  • Rated Impulse Withstand Voltage (Uimp): 8 kV
  • Rated Insulation Voltage (Ui): 750 V
  • Rated Operational Voltage: 750 V
  • Rated Short-time Withstand Current (Icw): for 1 s 0.5 kiloampere rms
  • Power Loss: 1.6 W
  • Pollution Degree: 3
  • Handle Color: Black
  • Handle Type: Handle and shaft not included
  • Switches Operating Mechanism: Mechanism on Top of the Switch
  • Distance Between Phases: Standard
  • Position of Line Terminals: Top In - Bottom Out, Bottom In - Top Out
  • Operating Mode: Front operated
  • Mounting Type: Base mounting
  • Number of Poles: 3
  • Cable Cross-Section: 0.75 ... 10 mm²
  • Degree of Protection: Front IP20

Technical UL/CSA

  • Horsepower Rating UL/CSA: (acc. to UL 200 V) 10 Hp(acc. to UL 208 V) 10 Hp(acc. to UL 240 V) 10 Hp(acc. to UL 480 V) 20 Hp(acc. to UL 600 V) 25 Hp
  • Ampere Rating UL/CSA: 40 A

Container Information

  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 80 mm
  • Package Level 1 Depth / Length: 108 mm
  • Package Level 1 Height: 79 mm
  • Package Level 1 Gross Weight: 0.25 kg
  • Package Level 1 EAN: 6417019390536

Classifications

  • Object Classification Code: Q
  • ETIM 5: EC000216 - Switch disconnector
  • ETIM 6: EC000216 - Switch disconnector
  • ETIM 7: EC000216 - Switch disconnector
  • UNSPSC: 39122233
  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
  • E-Number (Sweden): 3171262

Overview

GTiN 00804325415552
Size 68x68x70mm
Type Disconnect switch
Family Brand Name Thomas & Betts
Number of Poles 3 Pole
Mounting Type Base Mounting
