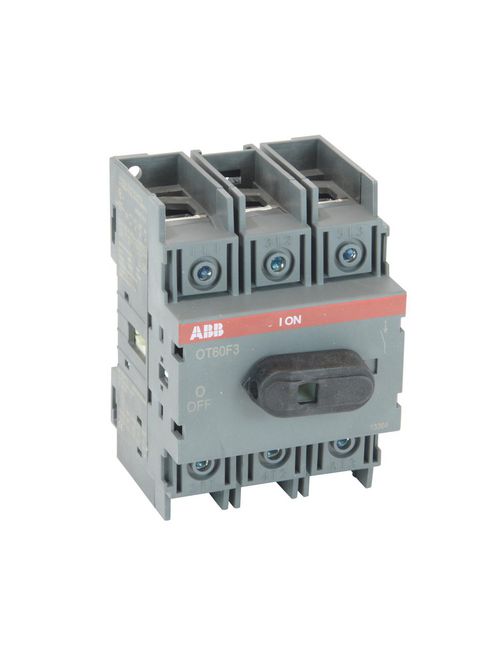

Thomas & Betts OT60F3 600 VAC 60 Amp 3-Pole Open Non-Fusible Disconnect Switch
$216.75/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABBEMPLV
Mfg Catalog # OT60F3
North Coast Part # 1012034

Specifications

Dimensions

  • Product Net Width: 70 mm
  • Product Net Height: 100 mm
  • Product Net Depth / Length: 74 mm
  • Product Net Weight: 0.36 kg

Technical

  • Rated Operational Current AC-21A (Ie): (500 V) 63 A(380 ... 415 V) 63 A(690 V) 63 A
  • Rated Operational Current AC-22A (Ie): (380 ... 415 V) 63 A(500 V) 63 A(690 V) 63 A
  • Rated Operational Current AC-23A (Ie): (380 ... 415 V) 63 A(500 V) 63 A(690 V) 40 A
  • Rated Operational Power AC-23A (Pe): (380 ... 415 V) 37 kW(500 V) 37 kW(690 V) 37 kW
  • Rated Impulse Withstand Voltage (Uimp): 8 kV
  • Rated Insulation Voltage (Ui): acc. to IEC/EN 60664-1 750 V
  • Rated Operational Voltage: Main Circuit 750 V
  • Rated Short-Circuit Making Capacity (Icm): (690 V) 3.6 kA
  • Rated Short-time Withstand Current (Icw): for 1 s 2.5 kA
  • Power Loss: at Rated Operating Conditions per Pole 1.6 W
  • Pollution Degree: 3
  • Handle Type: KnobHandle and shaft not included
  • Switches Operating Mechanism: Mechanism on Top of the Switch
  • Distance Between Phases: Standard
  • Position of Line Terminals: Top In - Bottom OutBottom In - Top Out
  • Operating Mode: Front operated
  • Standards: IEC 60947-3 / UL 98 / CSA C22.2 NO.4
  • Special Functions: No
  • Mounting Type: Base mounting
  • Number of Poles: 3
  • Cable Cross-Section: Cu 2.5...25 mm²
  • Degree of Protection: Front IP20
  • Terminal Type: Screw Terminals
  • Tightening Torque: acc. IEC 60947-1 6.2 N·m
  • Mechanical Durability: 20000

Technical UL/CSA

  • Maximum Operating Voltage UL/CSA: 600 V
  • Horsepower Rating UL/CSA: (110 ... 120 V AC) Single Phase 3 Hp(240 V AC) Single Phase 7.5 Hp(220 ... 240 V AC) Three Phase 20 Hp(440 ... 480 V AC) Three Phase 40 Hp(550 ... 600 V AC) Three Phase 40 Hp
  • Ampere Rating UL/CSA: 60 A
  • Tightening Torque UL/CSA: 55 in·lb

Environmental

  • RoHS Status: Following EU Directive 2011/65/EU
  • Environmental Information: 1SCC301154D0202

Container Information

  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 81 mm
  • Package Level 1 Depth / Length: 112 mm
  • Package Level 1 Height: 86 mm
  • Package Level 1 Gross Weight: 0.39 kg
  • Package Level 1 EAN: 6417019392066

Classifications

  • Object Classification Code: Q
  • ETIM 5: EC000216 - Switch disconnector
  • ETIM 6: EC000216 - Switch disconnector
  • ETIM 7: EC000216 - Switch disconnector
  • UNSPSC: 39122233
  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)

Overview

GTiN 00804325415620
Type Circuit breaker enclosure
Applications Suitable for use as motor disconnects or industrial control panel disconnects on service entrance equipment, panelboards, switchboards, industrial control equipment, motor control centers, etc.
Family Brand Name Thomas & Betts
Number of Poles 3 Pole
Terminal Type Screw Terminals
Mounting Type Base Mounting
Standard CSA C22.2 NO.4,IEC 60947-3,UL 98
