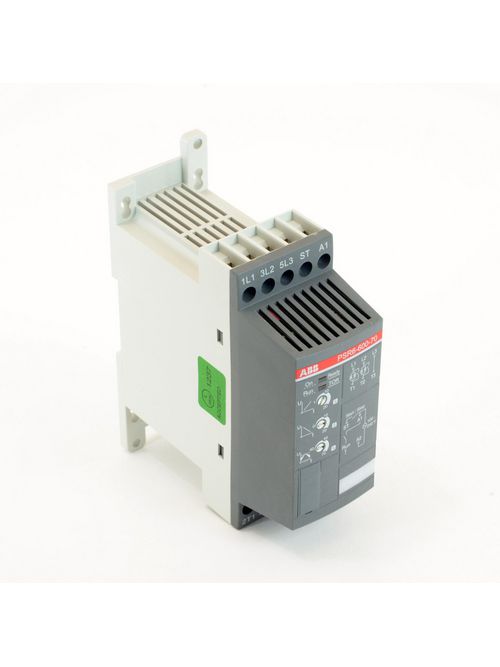

ABB PSR6-600-70 PSR SSTR,600V/240VA

Specifications

Ordering

• Minimum Order Quantity: 1 piece
• Customs Tariff Number: 85044090

Dimensions

• Product Net Width: 45.000 mm
• Product Net Height: 140.000 mm
• Product Net Depth / Length: 114.000 mm
• Product Net Weight: 0.4 kg

Technical

• Rated Operational Voltage: 208 … 600 V AC
• Rated Control Supply Voltage (Us): 100 ... 240 V AC
• Rated Control Circuit Voltage (Uc): 50 Hz / 60 Hz 100 ... 240 V AC
• Rated Frequency (f): Main Circuit 50/60 HzControl Supply 50/60 Hz
• Rated Operational Power - In-Line Connection (Pe): (230 V) 1.5 kW(400 V) 3 kW(500 V) 4 kW
• Rated Operational Current - In-Line Connection (Ie): 6.8 A
• Service Factor Percentage: 100 %
• Overload Protection: Recommended MS116 4.00 … 10.00
• Integrated Electronic Overload: No
• Adjustable Rated Motor Current Ie: No %
• Starting Capacity at Maximum Rated Current Ie: 4xIe for 6s
• Ramp Time: During Start 1 ... 10 second [unit of time]During Stop 0 ... 20 second [unit of time]
• Initial Voltage During Start: 40 ... 70 %
• Step Down Voltage Special Ramp: 100 ... 60 %
• Current Limit Function: No
• Switch for Inside Delta Connection: No
• Run Signal Relay: Yes
• By-pass Signal Relay: No
• Fault Signal Relay: No
• Overload Signal Relay: No
• Signal indication completed start ramp (LED): Green
• Signal indication ready to start/standby ON (LED): Green
• Signal indication running R (LED): Green
• Signal indication ramping up/down (LED): Green
• Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time: 10
• Communication: FiledBusPlug(Optional)
• Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
• Terminal Type: Screw Terminals
• Connecting Capacity Main Circuit: Rigid 1/2x0.75 ... 2.5 mm²
• Connecting Capacity Control Circuit: Rigid 1/2 x 0.75 ... 2.5 mm²
• Connecting Capacity Supply Circuit: Rigid 1/2x0.75 ... 2.5 mm²
• Tightening Torque: Main Circuit 1 N·mSupply Circuit 1 N·mControl Circuit 1 N·m
• Product Main Type: PSR6

Environmental

• Ambient Air Temperature: Storage -40 ... +70 °COperation -25 ... +60 °C
• RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment

Container Information

• Package Level 1 Width: 51 mm
• Package Level 1 Depth / Length: 156 mm
• Package Level 1 Height: 124 mm
• Package Level 1 Gross Weight: 0.55 kg
• Package Level 1 EAN: 7320500338209
• Package Level 1 Units: 1 piece
• Package Level 2 Units: 1 piece

Classifications

• Object Classification Code: Q
• ETIM 4: EC002572 - Electronic motor control and protection device
• ETIM 5: EC002572 - Electronic motor control and protection device
• ETIM 6: EC002572 - Motor management device
• UNSPSC: 39121521
