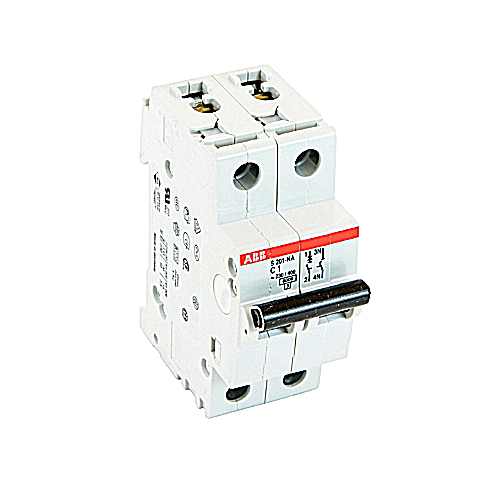

ABB S201-C1NA LEGACY SEE REPLACEMEN
Product image thumbnail 0
Product image thumbnail 1
$62.24/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABB
Mfg Catalog # S201-C1NA
North Coast Part # 1343850

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121603 Miniature circuit breakers
  • IGCC: 4897 Miniature circuit breakers
  • Brand Name: ABB
  • Type: High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
  • Special Features: DIN Rail Mounting, Finger Safe and Multi-Function Terminals
  • Application: Designed for Use with Medium Magnetic Start Up Currents; Example: Lighting, Control Panels
  • Standard: UL 1077, CSA 22.2 No. 235, IEC 60898
  • Voltage Rating: 277/Y480 VAC, 60/110 VDC
  • Amperage Rating: 1 Amp
  • Frequency Rating: 50/60 Hertz
  • Trip Type: C
  • Interrupt Rating: 6 kA
  • Number Of Poles: 1 Plus Neutral
  • Auxiliary Contacts: Yes
  • Length: 69 mm
  • Width: 17.5 mm
  • Height: 88 mm
  • Operating Temperature: -25 to +55 Degrees Celcius

Packaging

  • Inner Quantity: 1
  • Outer Quantity: 5
  • Outer Dimensions (inches): 7.2x3.62x3.15
  • Weight Uom: 56.5 lbs. per 100

Overview

UPC 66201917297
Item Long Description Miniature Circuit Breaker, Supplementary Protector, Rated Current 1 Amp, 1 Plus Neutral Pole, Interrupt Rating 6 kA, Thermal Magnetic Trip Curve C, Voltage up to 277/Y480 VAC, 60/110 VDC, DIN Rail Mounted, Finger Safe and Multi-Function Terminals, UL 1077, CSA 22.2 No. 235
GTiN 00662019172972
Length 69 mm
Width 17.5 mm
Operating Temperature -25 To 55 C
Voltage 60/110 Volt
Type High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
Applications Designed for Use with Medium Magnetic Start Up Currents; Example: Lighting, Control Panels
Height 88 mm
Frequency 50/60 Hz
Family Brand Name Thomas & Betts
Box Quantity 5
Amperage 1 Amp
Trip Type C
Number of Poles 1
Interrupt Rating 6 kA
