ABB S201-K0.5 LEGACY SEE REPLACEMEN

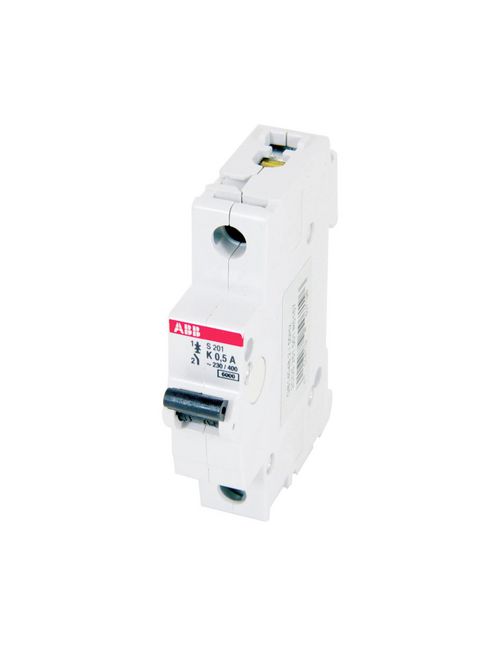

Product image thumbnail 0
Product image thumbnail 1
$27.92/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABBEMPLV
Mfg Catalog # S201-K0.5
North Coast Part # 1159948

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121603 Miniature circuit breakers
  • IGCC: 4897 Miniature circuit breakers
  • Brand Name: ABB
  • Type: High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
  • Special Features: DIN Rail Mounting, Finger Safe and Multi-Function Terminals
  • Application: Designed for Allowing Higher In-Rush Current During System Start Up; Example: Motors, Transformers
  • Standard: UL 1077, CSA 22.2 No. 235, IEC 60898
  • Voltage Rating: 277/Y480 VAC, 60/110 VDC
  • Amperage Rating: 0.5 Amps
  • Frequency Rating: 50/60 Hertz
  • Trip Type: K
  • Interrupt Rating: 6 kA
  • Number Of Poles: 1
  • Auxiliary Contacts: Yes
  • Length: 69 mm
  • Width: 17.5 mm
  • Height: 88 mm
  • Operating Temperature: -25 to +55 Degrees Celcius

Packaging

  • Inner Quantity: 1
  • Outer Quantity: 10
  • Outer Dimensions (inches): 7.2x3.62x3.15
  • Weight Uom: 28.5 lbs. per 100

Overview

GTiN 00662019168456
Length 69 mm
Width 0.689 in
Operating Temperature -25 to +55 C
Voltage 60/110 Volt
Type High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
Applications Designed for Allowing Higher In-Rush Current During System Start Up; Example: Motors, Transformers
Height 3.4646 in
Frequency 50/60 Hz
Family Brand Name Thomas & Betts
Carton Qty 1
Box Quantity 10
Amperage 0.5 Amp
Trip Type K
Number of Poles 1 Pole
Interrupt Rating 6 kA
