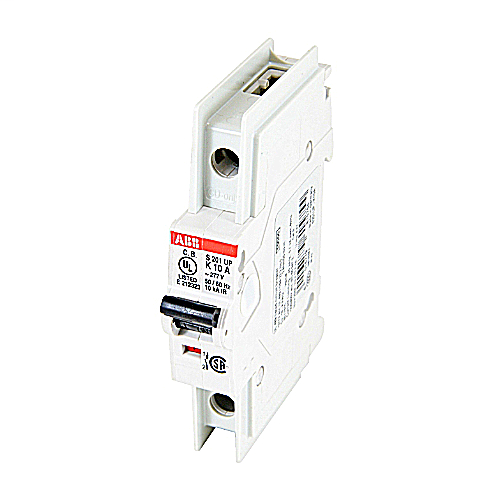

ABB S201UP-K10 MCB 1P K 10A 480Y/27
$78.52/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABB
Mfg Catalog # S201UP-K10
North Coast Part # 1012444

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121603 Miniature circuit breakers
  • IGCC: 4897 Miniature circuit breakers
  • Brand Name: ABB
  • Type: High Performance MCB, Branch Circuit Protection
  • Special Features: DIN Rail Mounting, Finger Safe and Multi-Function Terminals
  • Application: Designed for Allowing Higher In-Rush Current During System Start Up; Example: Motors, Transformers
  • Standard: UL 489, CSA 22.2 No. 5, IEC 60947-2, UL E212323
  • Voltage Rating: 277/Y480 VAC
  • Amperage Rating: 10 Amps
  • Frequency Rating: 50/60 Hertz
  • Trip Type: K
  • Interrupt Rating: 10 kA
  • Number Of Poles: 1
  • Auxiliary Contacts: Yes
  • Length: 71 mm
  • Width: 17.5 mm
  • Height: 100 mm
  • Operating Temperature: -25 to +55 Degrees Celcius

Packaging

  • Inner Quantity: 1
  • Outer Quantity: 10
  • Outer Dimensions (inches): 7.2x4.13x3.15
  • Weight Uom: 0.3 lbs. Each

Overview

UPC 66201916959
GTiN 00662019169590
Length 71 mm
Width 17.5 mm
Operating Temperature -25 To 55 C
Voltage 277/480 Volt
Type High Performance MCB, Branch Circuit Protection
Applications Designed for Allowing Higher In-Rush Current During System Start Up; Example: Motors, Transformers
Height 100 mm
Frequency 50/60 Hz
Family Brand Name Thomas & Betts
Carton Qty 1
Box Quantity 10
Amperage 10 Amp
Trip Type K
Number of Poles 1
Interrupt Rating 10 kA
