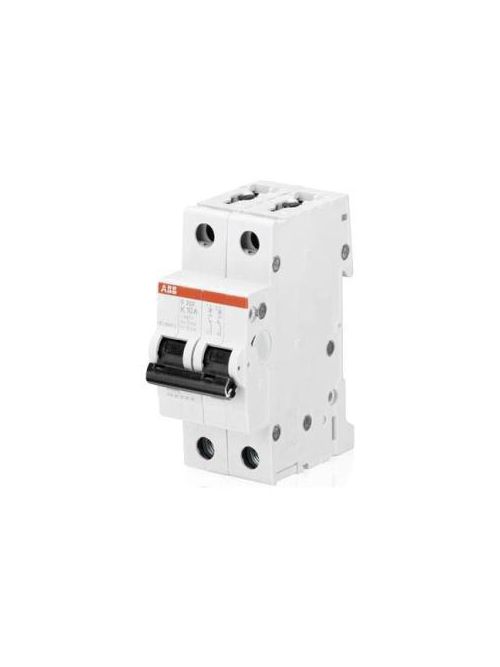

ABB S202-K1.6 LEGACY SEE REPLACEMEN

$63.09/ea

Usually ships within 11 to 17 Days

Adding...

Already a Customer? Log in to view your pricing

Specifications

UNSPSC: 39121603 Miniature circuit breakers
IGCC: 4897 Miniature circuit breakers
Brand Name: ABB
Type: High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
Special Features: DIN Rail Mounting, Finger Safe and Multi-Function Terminals
Application: Designed for Allowing Higher In-Rush Current During System Start Up; Example: Motors, Transformers
Standard: UL 1077, CSA 22.2 No. 235, IEC 60898
Voltage Rating: 277/Y480 VAC, 60/110 VDC
Amperage Rating: 1.6 Amps
Frequency Rating: 50/60 Hertz
Trip Type: K
Interrupt Rating: 6 kA
Number Of Poles: 2
Auxiliary Contacts: Yes
Length: 69 mm
Width: 35 mm
Height: 88 mm
Operating Temperature: -25 to +55 Degrees Celcius

GTiN	00662019170893
Length	69 mm
Width	1.378 in
Operating Temperature	-25 to +55 C
Voltage	277/480 Volt
Type	High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
Applications	Designed for Allowing Higher In-Rush Current During System Start Up; Example: Motors, Transformers
Height	3.4646 in
Frequency	50/60 Hz
Family Brand Name	Thomas & Betts
Carton Qty	1
Box Quantity	5
Amperage	1.6 Amp
Trip Type	K
Number of Poles	2 Pole
Interrupt Rating	6 kA
