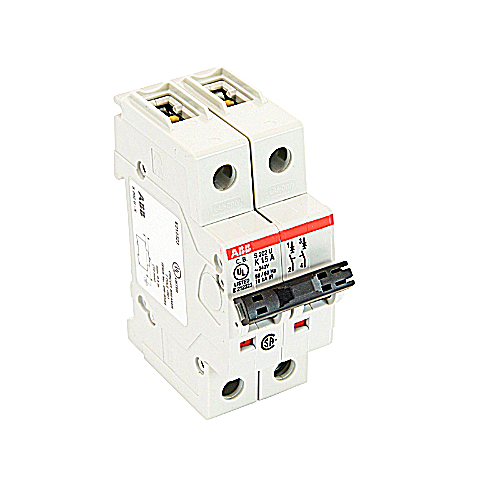

ABB S202U-K15 MCB 2P K 15A 240 BCPD
$117.15/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABB
Mfg Catalog # S202U-K15
North Coast Part # 1165316

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121603 Miniature circuit breakers
  • IGCC: 4897 Miniature circuit breakers
  • Brand Name: ABB
  • Type: High Performance MCB, Branch Circuit Protection
  • Special Features: DIN Rail Mounting, Finger Safe and Multi-Function Terminals
  • Application: Designed for Allowing Higher In-Rush Current During System Start Up; Example: Motors, Transformers
  • Standard: UL 489, CSA 22.2 No. 5, IEC 60947-2, UL E212323
  • Voltage Rating: 240 VAC
  • Amperage Rating: 15 Amps
  • Frequency Rating: 50/60 Hertz
  • Trip Type: K
  • Interrupt Rating: 10 kA
  • Number Of Poles: 2
  • Auxiliary Contacts: Yes
  • Length: 71 mm
  • Width: 35 mm
  • Height: 92 mm
  • Operating Temperature: -25 to +55 Degrees Celcius

Packaging

  • Inner Quantity: 1
  • Outer Quantity: 5
  • Outer Dimensions (inches): 7.05x4.11x3.18
  • Weight Uom: 60.5 lbs. per 100

Overview

UPC 80432562944
GTiN 00804325629447
Length 71 mm
Width 35 mm
Operating Temperature -25 To 55 C
Voltage 240 Volt
Type High Performance MCB, Branch Circuit Protection
Applications Designed for Allowing Higher In-Rush Current During System Start Up; Example: Motors, Transformers
Height 92 mm
Frequency 50/60 Hz
Family Brand Name Thomas & Betts
Carton Qty 1
Box Quantity 5
Amperage 15 Amp
Trip Type K
Number of Poles 2
Interrupt Rating 10 kA
