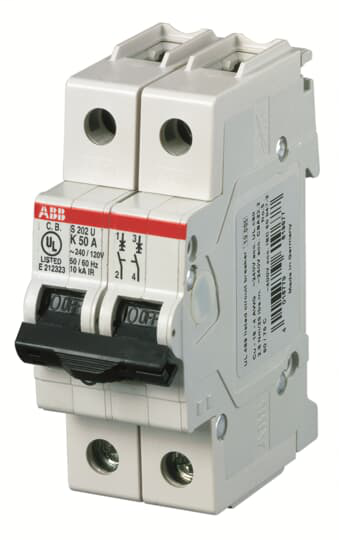

ABB S202U-K16 MCB 2P K 16A 240 BCPD
$117.15/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABB
Mfg Catalog # S202U-K16
North Coast Part # 1559655

Specifications

Technical

  • Standards: CSA 22.2 No. 5IEC/EN 60947-2UL 489
  • Number of Poles: 2
  • Number of Protected Poles: 2
  • Tripping Characteristic: K
  • Rated Current (In): 16 A
  • Rated Operational Voltage: acc. to IEC 60947-2 400 V AC
  • Power Loss: 4.2 Wat Rated Operating Conditions per Pole 2.1 W
  • Rated Insulation Voltage (Ui): acc. to IEC/EN 60664-1 440 V
  • Operational Voltage: Minimum 12 V AC
  • Rated Frequency (f): 50 Hz60 Hz
  • Rated Ultimate Short-Circuit Breaking Capacity (Icu): (400 V AC) 25 kA
  • Rated Service Short-Circuit Breaking Capacity (Ics): (400 V AC) 12.5 kA
  • Overvoltage Category: III
  • Pollution Degree: 3
  • Rated Impulse Withstand Voltage (Uimp): 4 kV(6.2 kV @ sea level)(5.0 kV @ 2000 m)
  • Dielectric Test Voltage: 50 / 60 Hz, 1 min: 2 kV
  • Housing Material: Insulation Group I, RAL 7035
  • Actuator Type: Insulation group II, black, sealable
  • Actuator Material: Insulation Group II, Black, Sealable
  • Actuator Marking: I / O
  • Contact Position Indication: Red ON / Green OFF
  • Degree of Protection: IP20
  • Remarks: IP40 in enclosure with cover
  • Electrical Endurance: 20000 AC cycle
  • Mechanical Endurance (Nendu): 20000 cycle
  • Terminal Type: Screw Terminals
  • Screw Terminal Type: Failsafe Bi-directional Cylinder-lift Terminal
  • Connecting Capacity: Busbar 10 / 10 mm²Flexible with Ferrule 0.75 ... 16 mm²Flexible 0.75 ... 16 mm²Rigid 0.75 ... 25 mm²Stranded 0.75 ... 25 mm²
  • Tightening Torque: 2.8 N·m
  • Recommended Screw Driver: Pozidriv 2
  • Mounting on DIN Rail: TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
  • Mounting Position: Any
  • Built-In Depth (t2): 71 mm
  • Installation Size: acc. to DIN 43880 2
  • Power Supply Connection: Arbitrary

Environmental

  • Ambient Air Temperature: Operation -25 ... +55 °CStorage -40 ... +70 °C
  • Reference Ambient Air Temperature: 20 °C
  • Resistance to Shock acc. to IEC 60068-2-27: 30g / 3 shocks / 11 ms
  • Resistance to Vibrations acc. to IEC 60068-2-6: 5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In
  • Environmental Conditions: 28 cycleswith 55 °C / 90-96 %and 25 °C / 95-100 %
  • RoHS Status: Following EU Directive 2011/65/EU

Technical UL/CSA

  • Maximum Operating Voltage UL/CSA: 240 V AC
  • Connecting Capacity UL/CSA: Busbar 18-8 AWGConductor 18-4 AWG
  • Tightening Torque UL/CSA: 25 in·lb
  • Short-Circuit Current Rating (SCCR): 10 kA

Dimensions

  • Product Net Width: 35 mm
  • Product Net Depth / Length: 69 mm
  • Product Net Height: 88 mm
  • Product Net Weight: 0.28 kg

Container Information

  • Package Level 1 Units: 5 piece
  • Package Level 1 Width: 105 mm
  • Package Level 1 Depth / Length: 183 mm
  • Package Level 1 Height: 80 mm
  • Package Level 1 Gross Weight: 1.46 kg
  • Package Level 1 EAN: 4016779621410

Ordering

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362010
  • Replacement Product ID (NEW): 2CDS272337R0467

Classifications

  • Object Classification Code: F
  • ETIM 6: EC000042 - Miniature circuit breaker (MCB)
  • ETIM 7: EC000042 - Miniature circuit breaker (MCB)
  • eClass: 7.0 27141901
  • UNSPSC: 39121614

Overview

UPC 66201916007
GTiN 00662019170268
Length 71 mm
Width 1.378 in
Operating Temperature -25 to +55 C
Type High Performance MCB, Branch Circuit Protection
Applications Designed for Allowing Higher In-Rush Current During System Start Up; Example: Motors, Transformers
Height 3.6221 in
Family Brand Name Thomas & Betts
Trip Type K
Number of Poles 2
Interrupt Rating 10 kA
Terminal Type Screw Terminals
Standard EN 60947-2UL 489,CSA 22.2 No. 5IEC
Current 16 A
