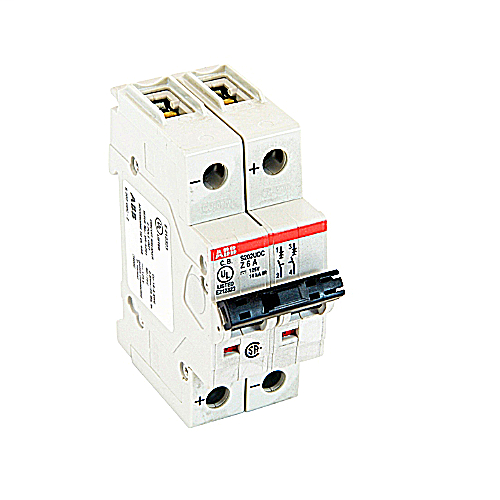

ABB S202UDC-Z6 S200UDC MCB 2P Z 6A
$164.15/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABBEMPLV
Mfg Catalog # S202UDC-Z6
North Coast Part # 828681

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121603 Miniature circuit breakers
  • IGCC: 4897 Miniature circuit breakers
  • Brand Name: ABB
  • Type: High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
  • Special Features: DIN Rail Mounting, Finger Safe and Multi-Function Terminals
  • Application: Designed to Provide Maximum Protection with a Very Low Short Circuit Trip Setting; Example: Semiconductors, Control Circuits
  • Standard: UL 489, VDE 0660, IEC 60947-2, UL E212323
  • Voltage Rating: 60/125 VDC
  • Amperage Rating: 6 Amps
  • Frequency Rating: 50/60 Hertz
  • Trip Type: K
  • Interrupt Rating: 14 kA
  • Number Of Poles: 2
  • Auxiliary Contacts: Yes
  • Length: 71 mm
  • Width: 35 mm
  • Height: 92 mm
  • Operating Temperature: -25 to +55 Degrees Celcius

Packaging

  • Inner Quantity: 1
  • Inner Dimensions (inches): 1x1x1
  • Outer Quantity: 5
  • Outer Dimensions (inches): 1x1x1
  • Weight Uom: 62.5 lbs. per 100

Overview

GTiN 00804325570299
Length 71 mm
Width 1.378 in
Operating Temperature -25 to +55 C
Voltage 60/125 Volt
Type High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
Applications Designed to Provide Maximum Protection with a Very Low Short Circuit Trip Setting; Example: Semiconductors, Control Circuits
Height 3.6221 in
Frequency 50/60 Hz
Family Brand Name Thomas & Betts
Carton Qty 1
Box Quantity 5
Amperage 6 Amp
Trip Type K
Number of Poles 2 Pole
Interrupt Rating 14 kA
